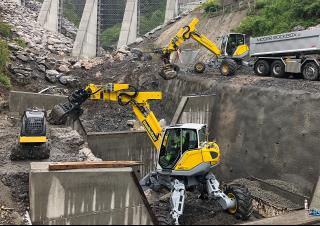

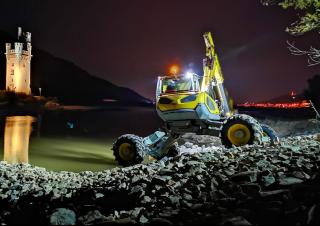

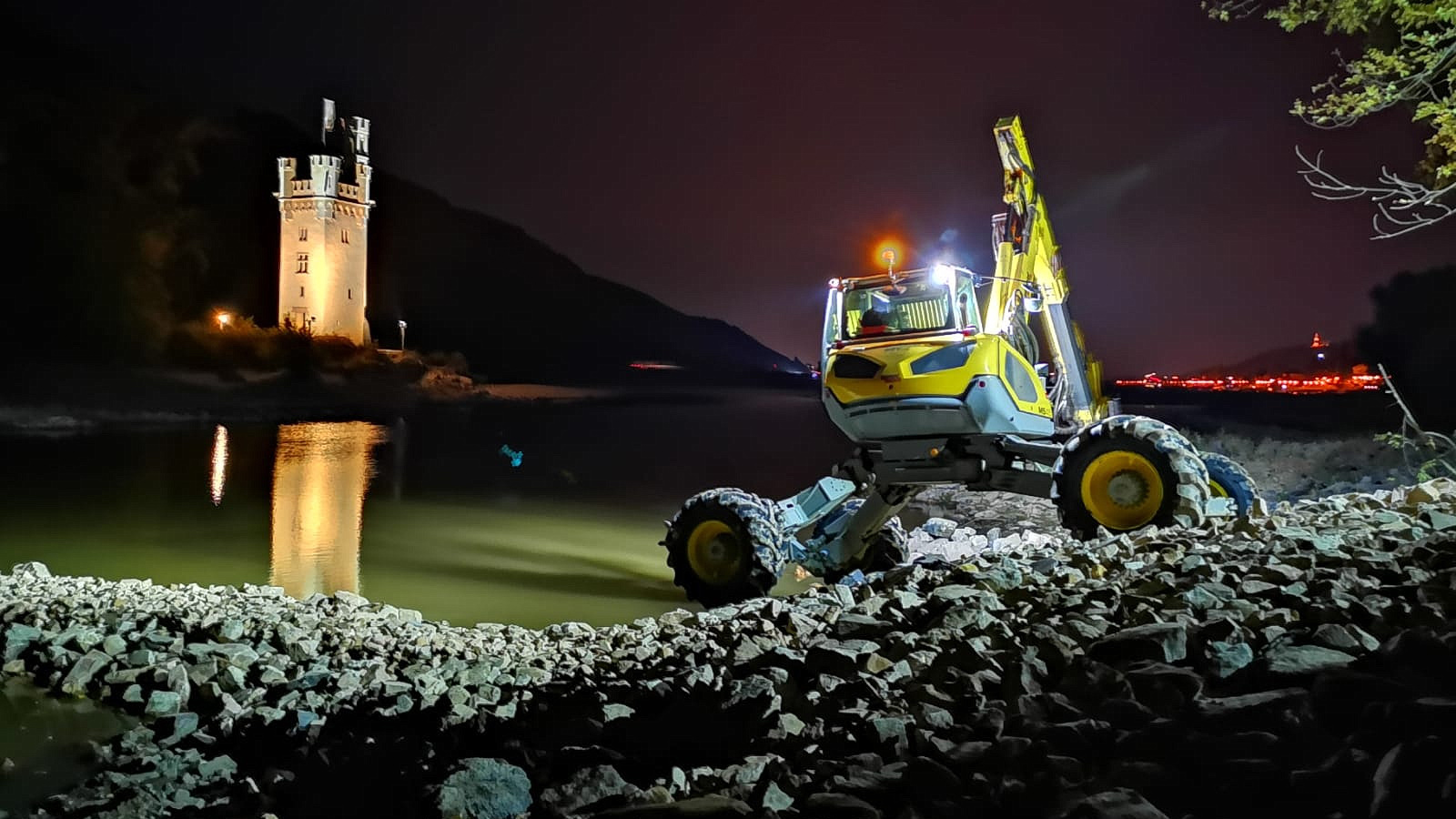

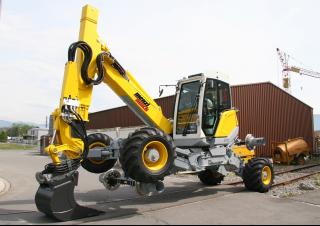

M535 Menzi excavator specs & dimensions (2020 - 2021)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - M535 Menzi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.6 t
- Standard tyres
- 600/50-22.5
- Bucket capacity
- 0.4 m³
- Transport length
- 5.18 m
- Transport width
- 2.37 m
- Transport height
- 2.55 m
- Max. Reach horizontal
- 8.21 m
- Dredging depth
- 5.47 m
- Tear-out force
- 69 kN
- Bucket width
- 0.6 m
- Model series
- M
- Engine manuf.
- Deutz
- Engine type
- TCD4.1 L4
- Engine power
- 115 kW
- Displacement
- 4.04 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 609/1500 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 101x126 mm
- Emission level
- EU V
Basic model incl. ROPS cabin, standard boom and standard bucket
Special equipment
- Overload alert
-
Yes
- Central lubrication
-
Yes
- Aircondition
-
Yes
