M325 Menzi excavator specs & dimensions (2020 - 2023)

Weight: 9.9t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.5m – Transport width: 2.35m – Transport …

Weight: 9.9t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.5m – Transport width: 2.35m – Transport height: 2.55m

Check out detailed specifications, information and technical data for Menzi M325 excavator manufactured between 2020 - 2023. Get more in-depth insight with Menzi M325 digger specifications. See information, like: Weight: 9.9t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.5m – Transport width: 2.35m – Transport height: 2.55m and more.

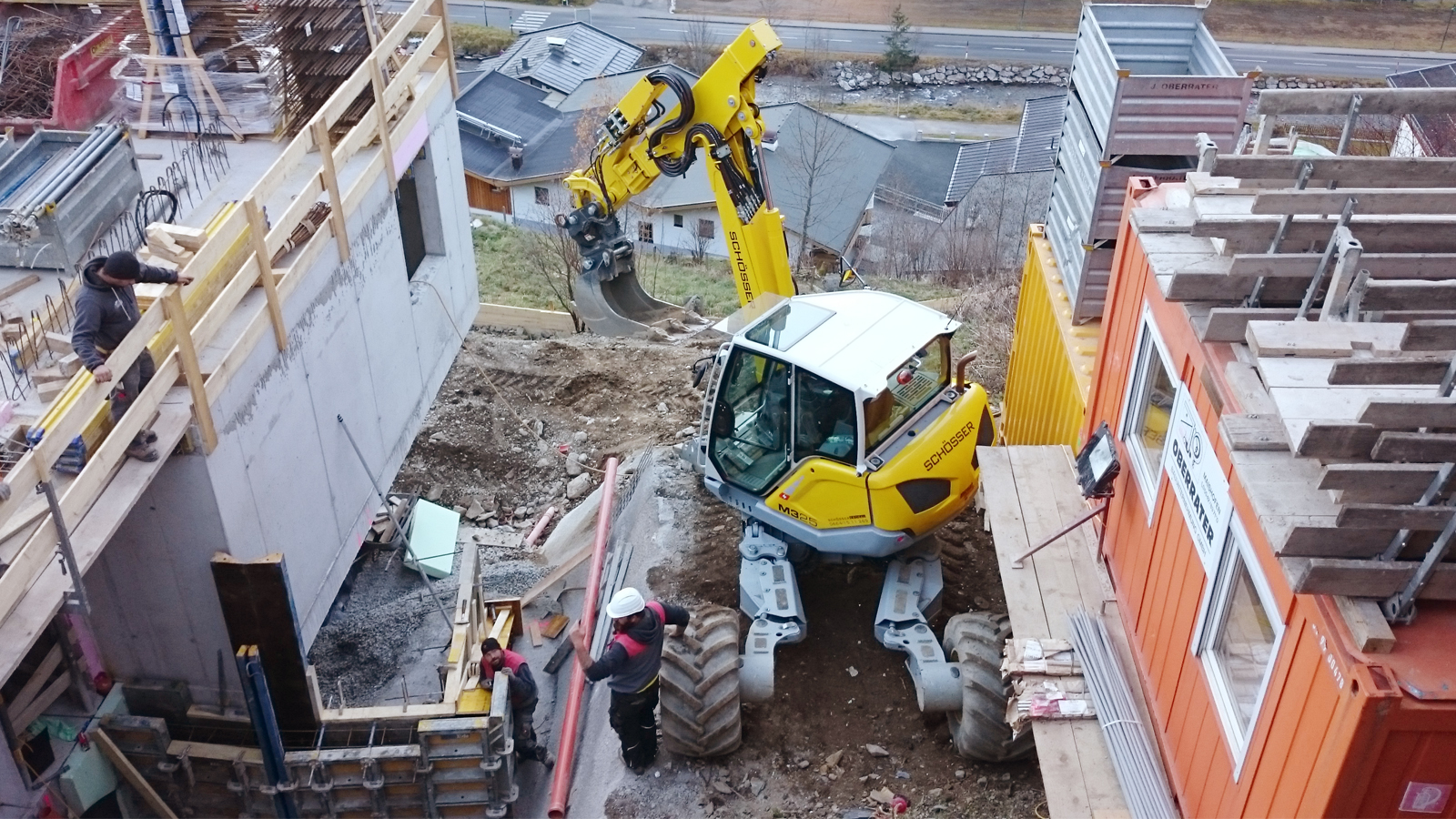

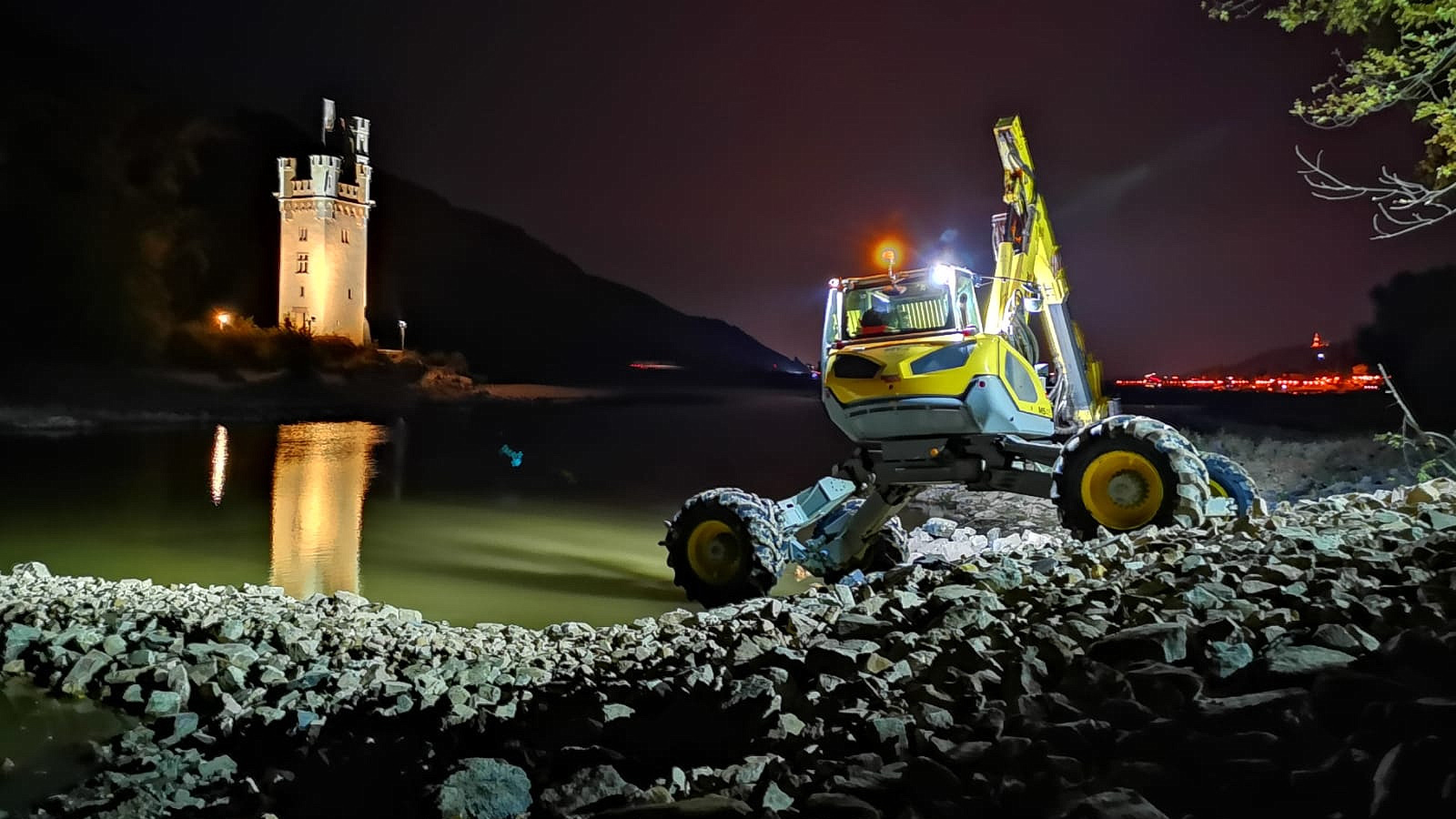

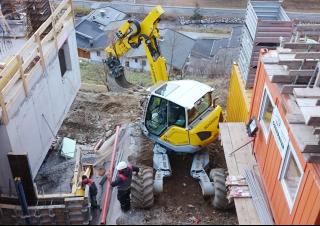

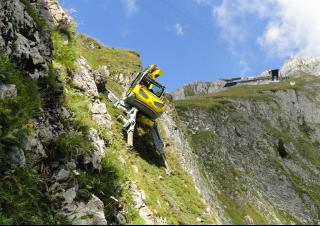

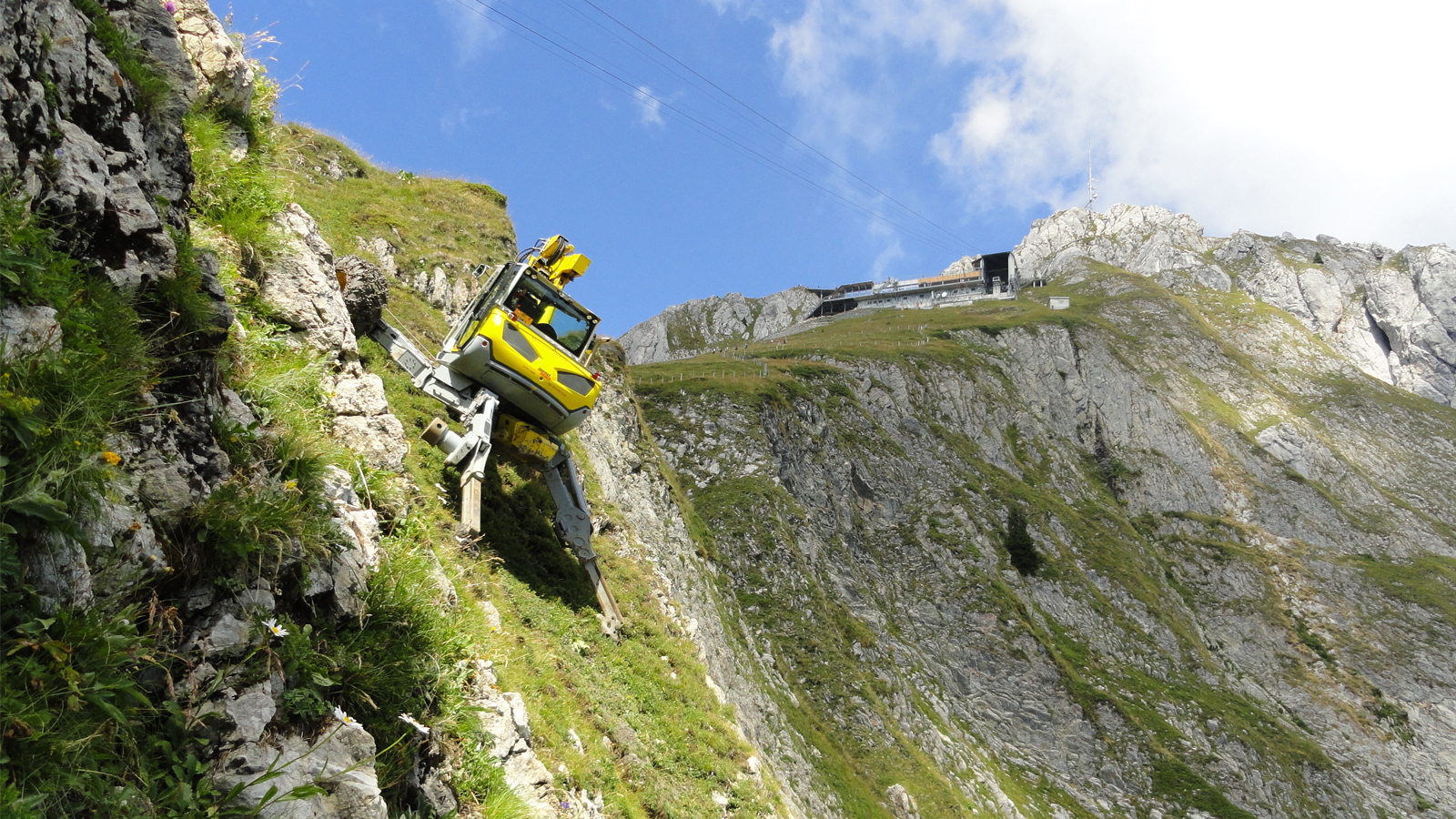

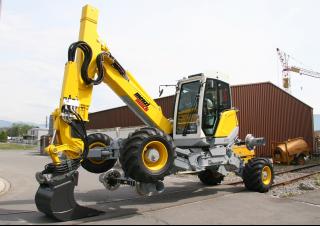

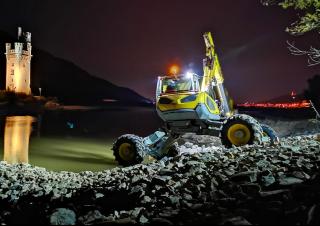

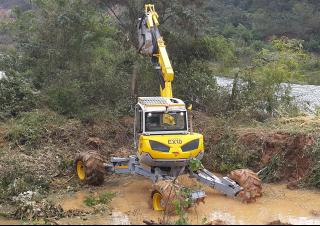

Walking Excavators Menzi M325
Walking Excavators Menzi M325
Walking Excavators Menzi M325
Walking Excavators Menzi M325
Walking Excavators Menzi M325
Walking Excavators Menzi M325
Walking Excavators Menzi M325
Walking Excavators Menzi M325
Walking Excavators Menzi M325
Walking Excavators Menzi M325

Technical specs - M325 Menzi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.9 t
Standard tyres
600/50-22.5
Bucket capacity
0.4 m³
Transport length
5.5 m
Transport width
2.35 m
Transport height
2.55 m
Max. Reach horizontal
7.77 m
Dredging depth
5 m
Tear-out force
54 kN
Bucket width
0.6 m
Model series
M
Engine manuf.
Deutz
Engine type
TCD3.6 LA
Engine power
100 kW
Displacement
3.6 l
Revolutions at max torque
1600 rpm
Max. torque
500/1600 Nm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard boom and standard bucket

Special equipment

Overload alert
Yes
Central lubrication
Yes
Aircondition
Yes
