Wacker Neuson TD 9 Specifications & Technical Data (2008-2011)

Technical specs - TD 9 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.6 t

Transport length: 1.83 m

Transport width: 0.8 m

Transport height: 1.35 m

Net load: 0.9 t

Dump capacity: 0.4 m³

Travel speed: 4 km/h

Track width: 200 mm

Model series: TD

Engine manuf.: Honda

Engine type: GX390

Engine power: 9.6 kW

Displacement: 0.389 l

Revolutions at max torque: 3000 rpm

Emission level: V

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Wacker Neuson TD 9 FAQ

When was the Wacker Neuson TD 9 manufactured?

The Wacker Neuson TD 9 was manufactured from 2008 to 2011.

How much does the Wacker Neuson TD 9 weigh?

The Wacker Neuson TD 9 weighs 0.6 tons.

What are the transport dimensions of the Wacker Neuson TD 9?

The Wacker Neuson TD 9 has a transport length of 1.83 meters, a transport width of 0.8 meters, and a transport height of 1.35 meters.

What is the travel speed of the Wacker Neuson TD 9?

The Wacker Neuson TD 9 has a travel speed of 4 km/h.

What is the track width of the Wacker Neuson TD 9's undercarriage?

The Wacker Neuson TD 9 has a track width of 200 mm in its undercarriage.

What is the material handling capacity of the Wacker Neuson TD 9 tracked dumper?

The Wacker Neuson TD 9 tracked dumper has a net load capacity of 0.9 tons and a dump capacity of 0.4 cubic meters.

How much is a Wacker Neuson TD 9 Tracked dumper (2008u20132011) worth?

The residual value of the Wacker Neuson TD 9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson TD 9 overview

Tracks

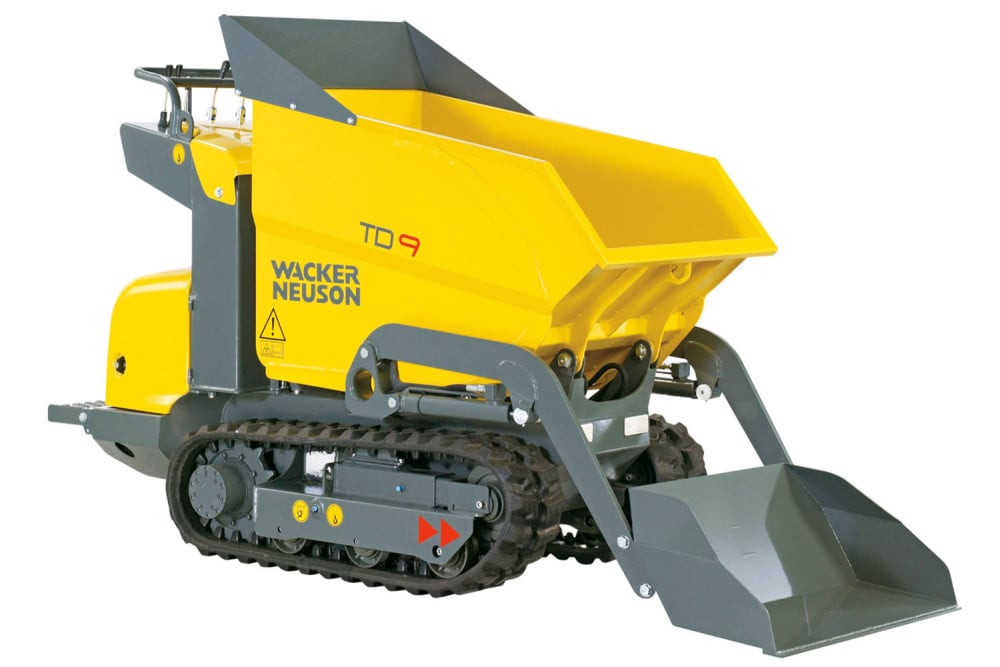

Tracked Dumper TD9

The tracked dumper TD9 from Wacker Neuson can be controlled to the centimetre on any type of ground thanks to its small dimensions and precise steering. Therefore it can be optimally used in particularly restricted places, where manoeuvrability is of the essence.

Operation

The tracked dumpers from Wacker Neuson

The TD15 is an all-rounder, and is as equally well deployed in internal fitting out as it is in the construction of sports facilities and roads or in creating landscapes. Its ground protecting tracks, the adjustable driver’s seat and the skip in the European pallet format open new dimensions. Concentration on what is important.

Equipment

Euro Pallet Dimensions

The Euro pallet dimensions of the 3 sided tipping skip greatly extends the areas of deployment of the TD18. This gives it additional functions as a specialist for transport tasks in difficult terrain.

Slewing Area

Infinite 180° slewing area for use in restricted areas and where the exact placing of bulk material is particularly important.

Practical Turn/Tip Skip

1. The practical turn/tip skip (TD18s) enables the infinitely adjustable tipping within full 180°, ideal for the exact placing of the bulk material. 2. The 3 sided tipping skip of Euro pallet dimensions is not only extremely versatile, but also turns the TD18 into a fully fledged machine for handling materials. 3. The chassis has "slave qualities" and is controlled hydrostatically. The pendular rollers enable obstacles and stairs to be negotiated. 4. Maximum ground clearance provides scope for unhindered movement internally and in the open. Full off-road capability is ensured even under difficult conditions.
