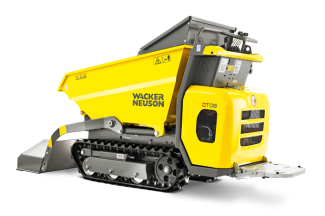

Wacker Neuson DT08 Specifications & Technical Data (2011-2026)

Technical specs - DT08 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.46 t

Transport length: 1.66 m

Transport width: 0.79 m

Transport height: 1.27 m

Net load: 0.8 t

Dump capacity: 0.39 m³

Travel speed: 3.9 km/h

Track width: 180 mm

Soil pressure: 0.15 kg/cm²

Loading height: 0.42 m

Model series: DT

Engine manuf.: Honda

Engine type: GX270

Engine power: 6.3 kW

Dimension lxwxh: 700x500x740 mm

Revolutions at max torque: 3100 rpm

More technical details, like: driver protection, turning radius outside, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, undercarriage type, rops, fops...

More technical details, like: driver protection, turning radius outside, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, undercarriage type, rops, fops, engine manufacturer, engine model, rated speed, engine output, torque rated speed, engine torque, fuel, drive, track rollers - each side, track shoe width, service type, width, overall length, track length on ground, ground clearance, skip lip height - untipped, skip lip height - tipped, payload - heaped, payload - struck, payload - water, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen, gross weight - standard build are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Wacker Neuson DT08 FAQ

When was the Wacker Neuson DT08 manufactured?

The Wacker Neuson DT08 was first produced in 2011.

How much does the Wacker Neuson DT08 weigh?

The Wacker Neuson DT08 weighs 0.46 tons.

What are the transport dimensions of the Wacker Neuson DT08?

The Wacker Neuson DT08 has a transport length of 1.66 meters, a transport width of 0.79 meters, and a transport height of 1.27 meters.

What is the travel speed of the Wacker Neuson DT08?

The Wacker Neuson DT08 has a travel speed of 3.9 km/h.

What are the undercarriage specifications of the Wacker Neuson DT08 tracked dumper?

The Wacker Neuson DT08 tracked dumper has a track width of 180 mm and a soil pressure of 0.15 kg/cmu00b2.

What is the material handling capacity of the Wacker Neuson DT08 tracked dumper?

The Wacker Neuson DT08 has a net load capacity of 0.8 tons, a dump capacity of 0.39 cubic meters, and a loading height of 0.42 meters.

How much is a Wacker Neuson DT08 Tracked dumper (2011u20132025) worth?

The residual value of the Wacker Neuson DT08 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
