Wacker Neuson DT05 Specifications & Technical Data (2011-2026)

Technical specs - DT05 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.37 t

Transport length: 1.16 m

Transport width: 0.66 m

Transport height: 1.185 m

Net load: 0.5 t

Dump capacity: 0.313 m³

Travel speed: 3.9 km/h

Track width: 180 mm

Soil pressure: 0.137 kg/cm²

Loading height: 4.1 m

Model series: DT

Engine manuf.: Honda

Engine type: GX200

Engine power: 4.5 kW

Displacement: 0.163 l

Revolutions at max torque: 3600 rpm

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, undercarriage type, rops, fops...

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, undercarriage type, rops, fops, engine manufacturer, engine model, rated speed, engine output, torque rated speed, engine torque, fuel, drive, track rollers - each side, track shoe width, service type, width, overall length, track length on ground, ground clearance, skip lip height - untipped, skip lip height - tipped, payload - heaped, payload - struck, payload - water, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen, gross weight - standard build are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Wacker Neuson DT05 FAQ

When was the Wacker Neuson DT05 manufactured?

The Wacker Neuson DT05 was first produced in 2011.

How much does the Wacker Neuson DT05 weigh?

The Wacker Neuson DT05 weighs 0.37 tons.

What are the transport dimensions of the Wacker Neuson DT05?

The Wacker Neuson DT05 has a transport length of 1.16 meters, a transport width of 0.66 meters, and a transport height of 1.19 meters.

What is the travel speed of the Wacker Neuson DT05?

The Wacker Neuson DT05 has a travel speed of 3.9 km/h.

What are the undercarriage specifications of the Wacker Neuson DT05?

The Wacker Neuson DT05 has a track width of 180 mm and a soil pressure of 0.137 kg/cmu00b2.

What is the material handling capacity of the Wacker Neuson DT05 tracked dumper?

The Wacker Neuson DT05 has a net load capacity of 0.5 tons and a dump capacity of 0.31 cubic meters.

How much is a Wacker Neuson DT05 Tracked dumper (2011u20132025) worth?

The residual value of the Wacker Neuson DT05 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Wacker Neuson DT05 user from Norway

A bit weak when fully loaded

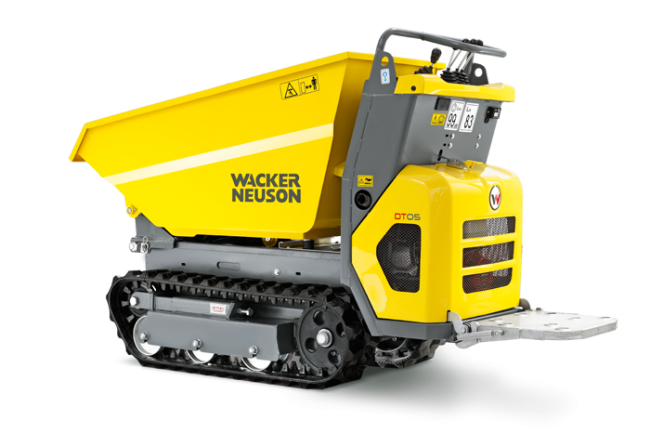

Wacker Neuson DT05 overview

Wacker Neuson DT05 features overview

The space saving miracle. DT05.

Wacker Neuson’s track dumper DT05 can be maneuvered on any surface with centimeter-accuracy, thanks to its compact dimensions and precision control. It really comes into its own where space is very tight and agility is a must. The hydrostatic drive enables easy and comfortable operation. Powerful engines (gasoline or diesel); 2-stage speed adjustment. Robust crawler design guarantees long service life with low wear and tear. Optimal ratio between low net weight and maximum payload. Ultra-compact dimensions (66 cm), ideal for working in confined spaces and making its way through standard doors; high ground clearance. Optional high-tipping skip available.
