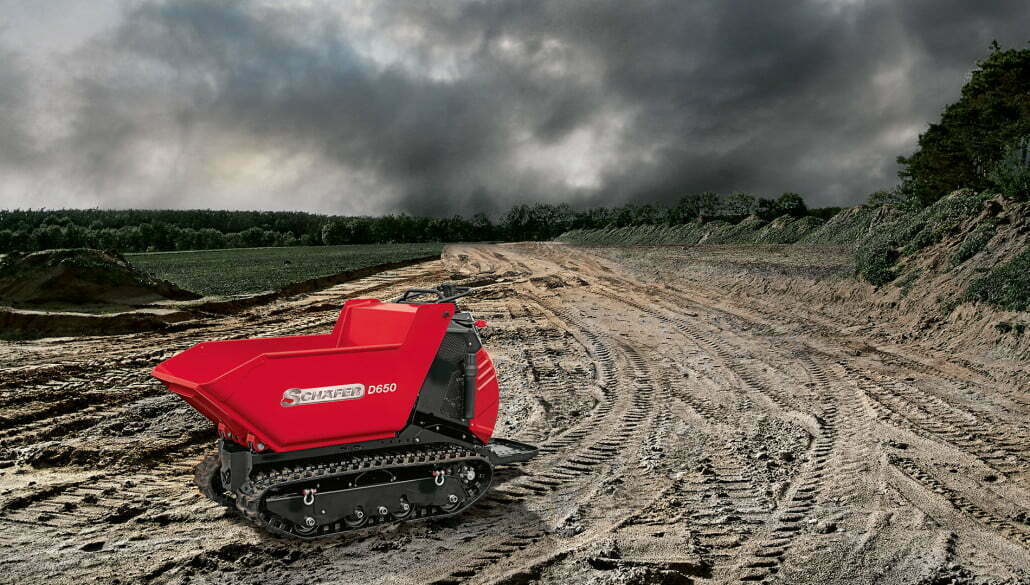

D 650 D SCHÄFER D 650 D Specifications & Technical Data (2024—2026)
Technical specs - D 650 D SCHÄFER
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 0.415 t
- Transport length
- 1.72 m
- Transport width
- 0.7 m
- Transport height
- 1.13 m
- Net load
- 0.6 t
- Dump capacity
- 0.25 m³
- Travel speed
- 3.6 km/h
- Track width
- 180 mm
- Soil pressure
- 0.17 kg/cm²
- Loading height
- 0.8 m
- Model series
- D
- Engine manuf.
- Yanmar
- Engine type
- L70N
- Engine power
- 4.9 kW
More technical details, like: driver protection, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
No
- Trough liftable
-
No
- Aircondition
-
No
