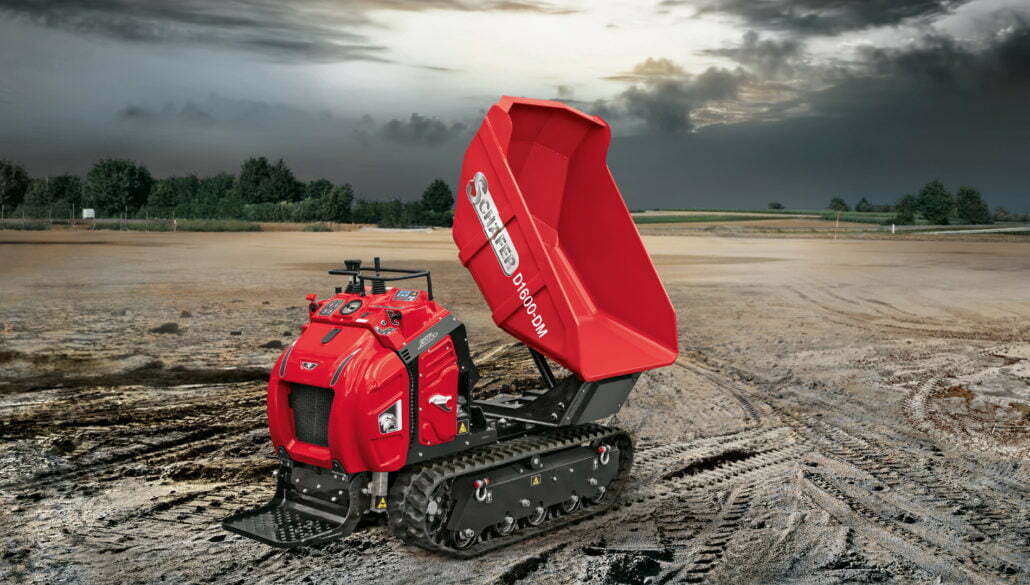

SCHÄFER D 1600-MF DM Specifications & Technical Data (2024-2026)

Technical specs - D 1600-MF DM SCHÄFER

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.919 t

Transport length: 2.16 m

Transport width: 0.945 m

Transport height: 1.35 m

Net load: 1.6 t

Dump capacity: 0.67 m³

Travel speed: 7.6 km/h

Track width: 230 mm

Soil pressure: 1.72 kg/cm²

Loading height: 0.95 m

Model series: D

Engine manuf.: Kubota

Engine type: D1105

Engine power: 19 kW

More technical details, like: driver protection, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

D 1600-MF DM SCHÄFER Specification for Europe (DE)

SCHÄFER D 1600-MF DM FAQ

When was the SCHu00c4FER D 1600-MF DM manufactured?

The SCHu00c4FER D 1600-MF DM was first produced in 2024.

How much does the SCHu00c4FER D 1600-MF DM weigh?

The SCHu00c4FER D 1600-MF DM weighs 0.919 tons.

What are the transport dimensions of the SCHu00c4FER D 1600-MF DM tracked dumper?

The SCHu00c4FER D 1600-MF DM has a transport length of 2.16 meters, a transport width of 0.945 meters, and a transport height of 1.35 meters.

What is the travel speed of the SCHu00c4FER D 1600-MF DM tracked dumper?

The SCHu00c4FER D 1600-MF DM tracked dumper has a travel speed of 7.6 km/h.

What are the undercarriage specifications of the SCHu00c4FER D 1600-MF DM tracked dumper?

The SCHu00c4FER D 1600-MF DM has a track width of 230 mm and a soil pressure of 1.72 kg/cmu00b2.

What is the material handling capacity of the SCHu00c4FER D 1600-MF DM tracked dumper?

The SCHu00c4FER D 1600-MF DM tracked dumper has a net load capacity of 1.6 tons, a dump capacity of 0.67 cubic meters, and a loading height of 0.95 meters.

How much is a SCHu00c4FER D 1600-MF DM Tracked dumper (2024u20132025) worth?

The residual value of the SCHu00c4FER D 1600-MF DM depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
