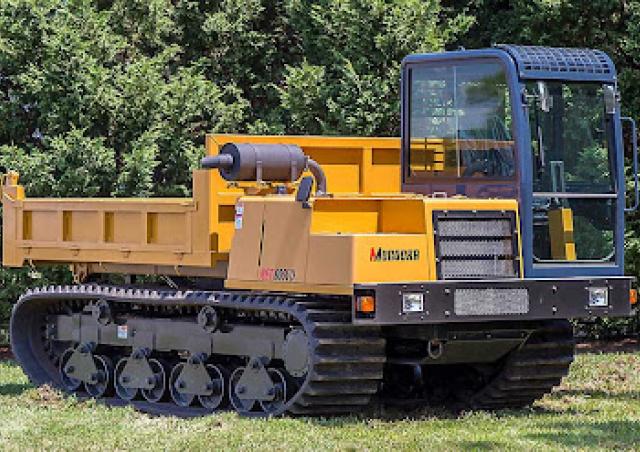

MST 800 VD Morooka MST 800 VD Specifications & Technical Data (2016—2020)
.jpeg)
Technical specs - MST 800 VD Morooka
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.2 t
- Transport length
- 4.5 m
- Transport width
- 2.455 m
- Transport height
- 2.71 m
- Net load
- 5 t
- Dump capacity
- 1.82 m³
- Driver protection
- Kb
- Travel speed
- 9.6 km/h
- Track width
- 600 mm
- Soil pressure
- 0.29 kg/cm²
- Loading height
- 1.55 m
- Turning radius outside
- 2.4 m
- Model series
- MST
- Engine manuf.
- Caterpillar
- Engine type
- C4.4
- Engine power
- 92.6 kW
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 530/1400 Nm
- Emission level
- Tier 4 i
More technical details, like: dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
No
- Trough liftable
-
No
- Aircondition
-
Yes
