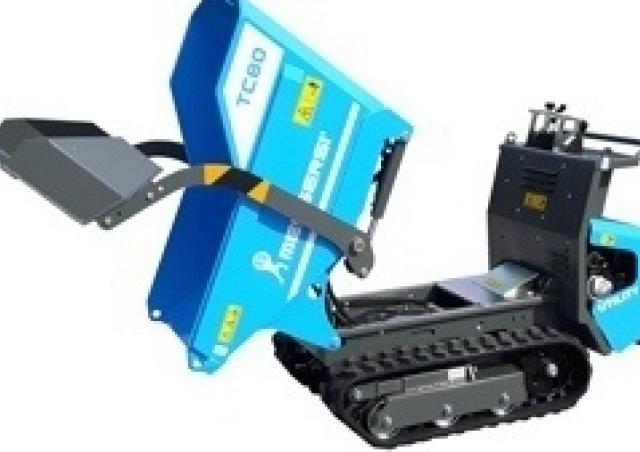

Messersi TC80 Specifications & Technical Data (2021-2026)

Technical specs - TC80 Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.6 t

Transport width: 0.84 m

Net load: 0.8 t

Dump capacity: 0.38 m³

Travel speed: 4.2 km/h

Track width: 180 mm

Soil pressure: 0.335 kg/cm²

Loading height: 1.633 m

Model series: TC

Engine manuf.: Honda

Engine type: GX270

Engine power: 6.6 kW

Displacement: 0.27 l

No. of cylinders: 1

Emission level: Stage V

More technical details, like: transport length, transport height, driver protection, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Messersi TC80 FAQ

When was the Messersi TC80 manufactured?

The Messersi TC80 was first produced in 2021.

How much does the Messersi TC80 weigh?

The Messersi TC80 weighs 0.6 tons.

What is the transport width of the Messersi TC80 tracked dumper?

The transport width of the Messersi TC80 tracked dumper is 0.84 meters.

What is the travel speed of the Messersi TC80 tracked dumper?

The Messersi TC80 has a travel speed of 4.2 km/h.

What are the undercarriage specifications of the Messersi TC80?

The Messersi TC80 has a track width of 180 mm and a soil pressure of 0.335 kg/cmu00b2.

What is the material handling capacity of the Messersi TC80 tracked dumper?

The Messersi TC80 tracked dumper has a net load capacity of 0.8 tons, a dump capacity of 0.38 cubic meters, and a loading height of 1.63 meters.

How much is a Messersi TC80 Tracked dumper (2021u20132025) worth?

The residual value of the Messersi TC80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
