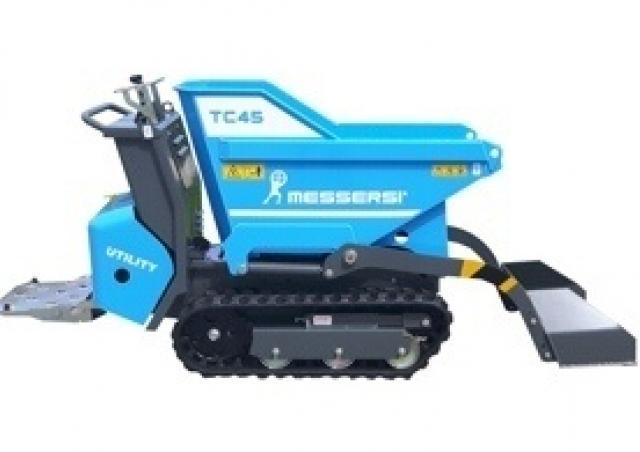

Messersi TC45 Specifications & Technical Data (2021-2026)

Technical specs - TC45 Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.505 t

Transport width: 0.707 m

Net load: 0.5 t

Dump capacity: 0.3 m³

Travel speed: 3.9 km/h

Track width: 180 mm

Soil pressure: 0.254 kg/cm²

Loading height: 1.631 m

Model series: TC

Engine manuf.: Briggs & Stratton

Engine type: 750

Engine power: 3.7 kW

Displacement: 0.163 l

No. of cylinders: 1

Emission level: Stage V

More technical details, like: transport length, transport height, driver protection, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Messersi TC45 FAQ

When was the Messersi TC45 manufactured?

The Messersi TC45 was first produced in 2021.

How much does the Messersi TC45 tracked dumper weigh?

The Messersi TC45 tracked dumper weighs 0.51 tons.

What is the transport width of the Messersi TC45?

The transport width of the Messersi TC45 is 0.71 meters.

What is the travel speed of the Messersi TC45?

The Messersi TC45 has a travel speed of 3.9 km/h.

What are the undercarriage specifications of the Messersi TC45?

The Messersi TC45 has a track width of 180 mm and a soil pressure of 0.254 kg/cmu00b2.

What is the material handling capacity of the Messersi TC45 tracked dumper?

The Messersi TC45 tracked dumper has a net load capacity of 0.5 tons, a dump capacity of 0.3 cubic meters, and a loading height of 1.63 meters.

How much is a Messersi TC45 Tracked dumper (2021u20132025) worth?

The residual value of the Messersi TC45 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Messersi TC45 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare Messersi TC45 with similar Tracked Dumpers

Messersi TC45

Weight:: 0.505 t

Transport width:: 0.707 m

Net load:: 0.5 t

Dump capacity:: 0.3 m³

JCB TD 7

Weight:: 0.54 t

Transport width:: 0.755 m

Net load:: 0.71 t

Dump capacity:: 0.3 m³

Cormidi 9.65

Weight:: 0.43 t

Net load:: 0.65 t

Dump capacity:: 0.42 m³

SCHÄFER D 1000

Weight:: 0.54 t

Transport width:: 0.96 m

Net load:: 1 t

Dump capacity:: 0.4 m³
