TC350-d Messersi TC350-d Specifications & Technical Data (2021—2026)

Weight: 2.8t – Transport length: 3.662m – Transport width: 1.545m – Transport height: 2.5m – Net load: 3.5t – Dump capacity: 1.35m³

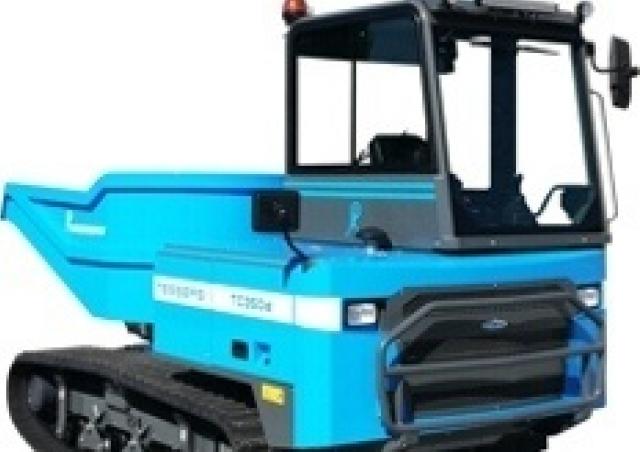

Tracked Dumpers Messersi TC350-d

Technical specs - TC350-d Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.8 t
Transport length
3.662 m
Transport width
1.545 m
Transport height
2.5 m
Net load
3.5 t
Dump capacity
1.35 m³
Travel speed
11 km/h
Track width
320 mm
Soil pressure
0.5 kg/cm²
Loading height
2.344 m
Model series
TC
Engine manuf.
Kubota
Engine type
V2403
Engine power
33 kW
Displacement
2.434 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
V

More technical details, like: driver protection, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment
No
Bucket
No
Heated dump body
No
Electric starter
No
Trough liftable
No
Aircondition
No

Download datasheets (PDF)

Messersi TC350-d FAQ

When was the Messersi TC350-d manufactured?

The Messersi TC350-d was first produced in 2021.

How much does the Messersi TC350-d weigh?

The Messersi TC350-d weighs 2.8 tons.

What are the transport dimensions of the Messersi TC350-d?

The Messersi TC350-d has a transport length of 3.66 meters, a transport width of 1.55 meters, and a transport height of 2.5 meters.

What is the travel speed of the Messersi TC350-d?

The Messersi TC350-d has a travel speed of 11 km/h.

What are the undercarriage specifications of the Messersi TC350-d?

The Messersi TC350-d has a track width of 320 mm and a soil pressure of 0.5 kg/cmu00b2.

What is the material handling capacity of the Messersi TC350-d tracked dumper?

The Messersi TC350-d tracked dumper has a net load capacity of 3.5 tons, a dump capacity of 1.35 cubic meters, and a loading height of 2.34 meters.

How much is a Messersi TC350-d Tracked dumper (2021u20132025) worth?

The residual value of the Messersi TC350-d depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
