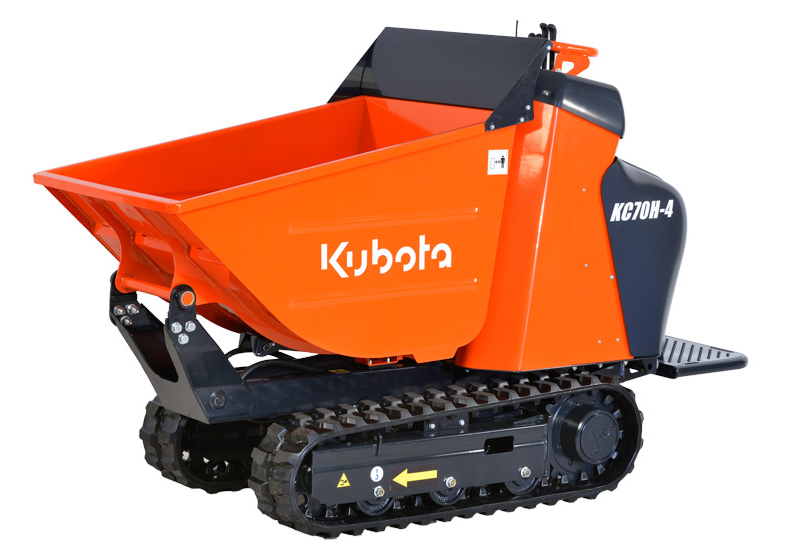

KC70H-4 Kubota KC70H-4 Specifications & Technical Data (2019—2026)
Technical specs - KC70H-4 Kubota
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 0.58 t
- Transport length
- 1.86 m
- Transport width
- 0.76 m
- Transport height
- 1.3 m
- Net load
- 0.7 t
- Dump capacity
- 0.34 m³
- Travel speed
- 3.8 km/h
- Track width
- 180 mm
- Soil pressure
- 0.18 kg/cm²
- Model series
- KC
- Engine manuf.
- Kubota
- Engine type
- OC95
- Engine power
- 7.1 kW
- Displacement
- 0.416 l
- Revolutions at max torque
- 3500 rpm
- No. of cylinders
- 1
More technical details, like: driver protection, loading height, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
Yes
- Trough liftable
-
No
- Aircondition
-
No
