KC 70 HV-4 Kubota KC 70 HV-4 Specifications & Technical Data (2016—2026)

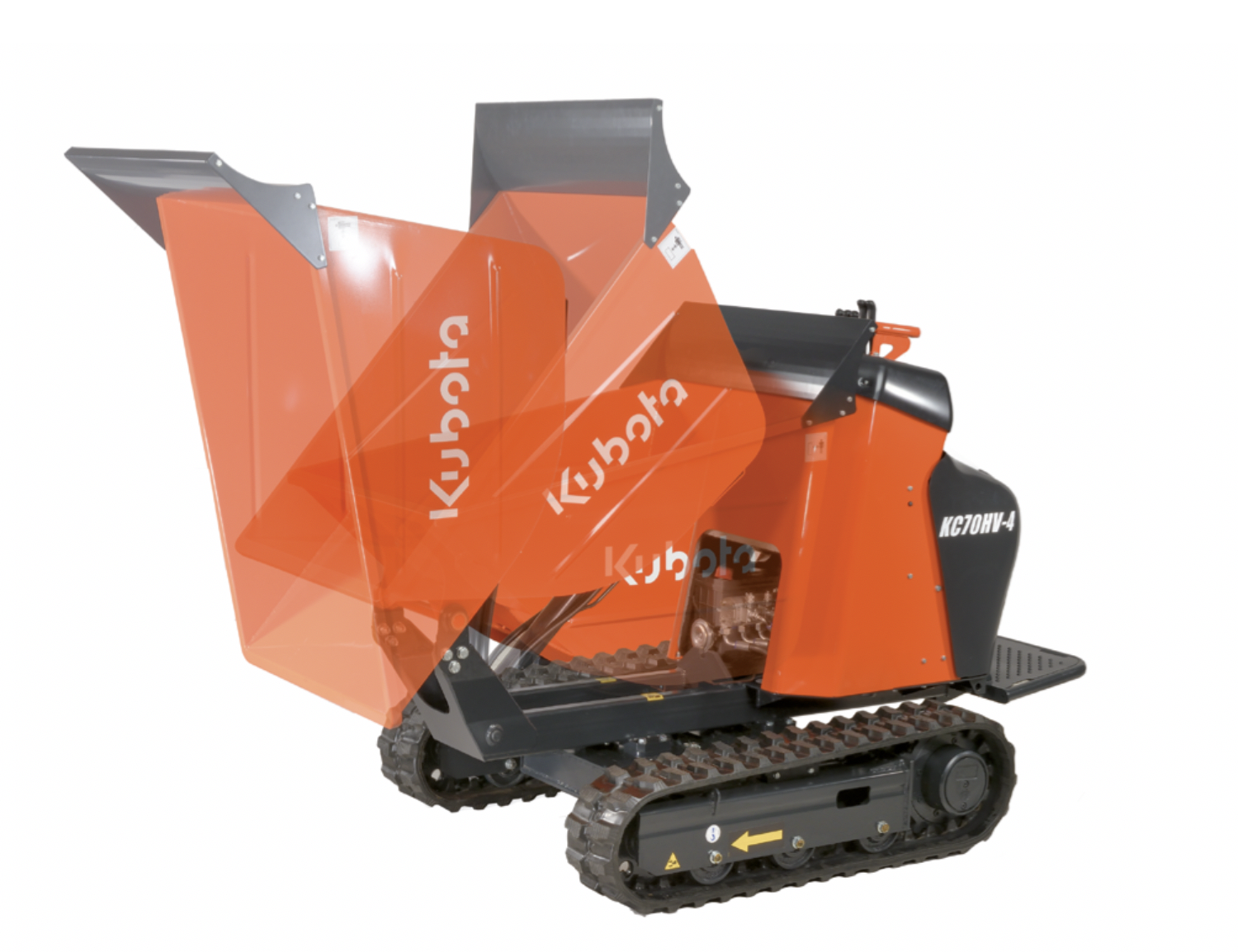

Kubota KC70-4

Compact, powerful and designed for optimum comfort, the new Kubota KC70-4 saves you time and trouble. Five versions are available: H/HV/VHD/SL/VSL.

Clean environmentally friendly engine

Tough and reliable, the air and oil cooled Kubota diesel engine delivers high torque, enhanced power (9.4 PS at 3500 rpm) and optimum fuel efficiency to minimise operating costs. It also features cleaner emissions and quieter operation which means it has lower impact on the environment.

Maintenance

A large opening bonnet gives good access to the main areas for daily maintenance: fuel tank, air filter, engine oil level, reserve tank and battery isolator switch.

Compact Design

With an overall width of only 758 mm, the KC70-4 efficiently transports material through gates and doorways, between houses, buildings and many other narrow spaces.

Grease Tension System and Short Pitch Track

The rubber crawler is tensioned by a grease cylinder. This feature allows cushioning when foreign materials are going into the crawler. In addition, the short pitch track offers smooth drive for higher comfort for the operator.

Variable Undercarriage (KC70HV-4)

The variable undercarriage extends the overall width from 758 mm to 1058 mm. At minimum width, the KC70-4 can easily go through a standard door. At maximum width, the KC70-4 offers great stability in all conditions.

Performance

With a maximum loading capacity of 700 kg and a heaped volume of 0.34 m3, the KC70-4 can transport material inside and outside buildings where space to manoeuver is limited. The KC70-4 can easily avoid obstacles with a rear angle of 28° and a ground clearance of 202 mm.

Convenient Width

Like the others models of the product family, The Kubota KC70VHD-4 has been designed to work in confined area. Its variable undercarriage allows to drive through narrow spaces when minimum tread is set (758mm overall width) and insure an excellent stability the undercarriage is extended at maximum position (1058mm).

Foldable foot plate

The KC70-4 features a foldable foot plate. When the plate is down, the operator can safely stand on it to operate the machine. When the plate is folded up, the overall length is reduced by 182 mm in order to gain space for transport or storage. The standing operation position makes it easier when getting on and off the machine.

Comfortable & Easy Operation

All levers and controls are easy to reach and operate. A grab handle bar secures the operator during operation.

Unloading operation

Unloading operation is fast and easy. The profile of the skip has been designed to ensure a quick discharge of the material. With a dumping angle of 88°, all materials exit easily from the skip.

Truck easy loading operation

Thanks to its high dump function, the KC70VHD-4 can empty its load up to 1.43m high (pin height). In addition, the dumping reach of 447mm allows to easily empty the load from the skip far away enough from the side of the truck edge.

Safety

A warning buzzer turns on when the skip is at a certain level if the slope angle is more than 8°C. A sensor located in the engine compartment detects the angle of the frame, the limit being 8°C. A micro-switch located on the lifting arm detects the position of the skip. It operates when the skip reaches a certain level preset by the factory.
