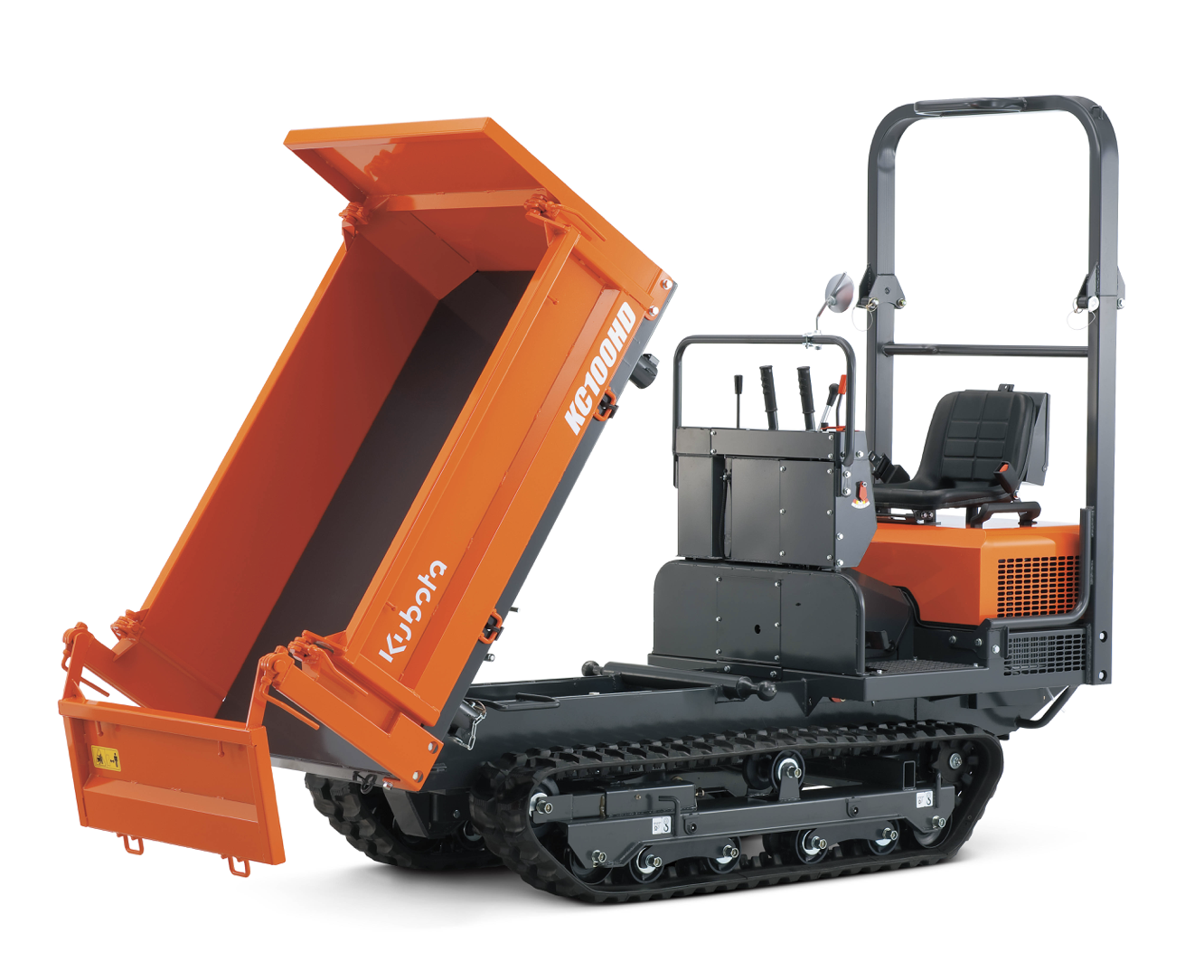

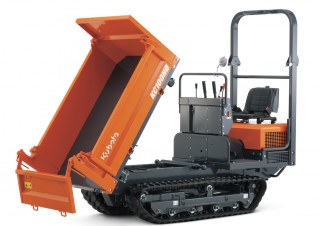

KC 100 HD Kubota KC 100 HD Specifications & Technical Data (2012—2026)
Technical specs - KC 100 HD Kubota
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 0.84 t
- Transport length
- 2.64 m
- Transport width
- 0.95 m
- Transport height
- 2.015 m
- Net load
- 1.2 t
- Dump capacity
- 0.52 m³
- Driver protection
- Ü
- Travel speed
- 3.9 km/h
- Track width
- 230 mm
- Soil pressure
- 0.32 kg/cm²
- Model series
- KC
- Engine manuf.
- Kubota
- Engine type
- Z482
- Engine power
- 8.3 kW
- Revolutions at max torque
- 3000 rpm
- No. of cylinders
- 1
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
Yes
- Trough liftable
-
No
- Aircondition
-
No
