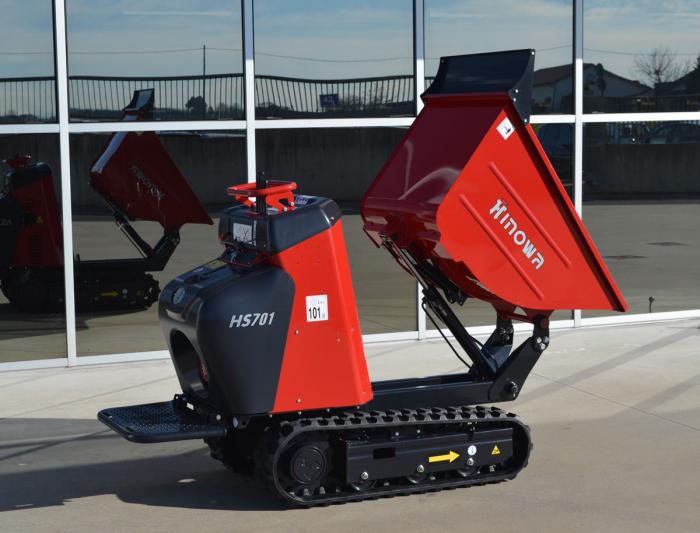

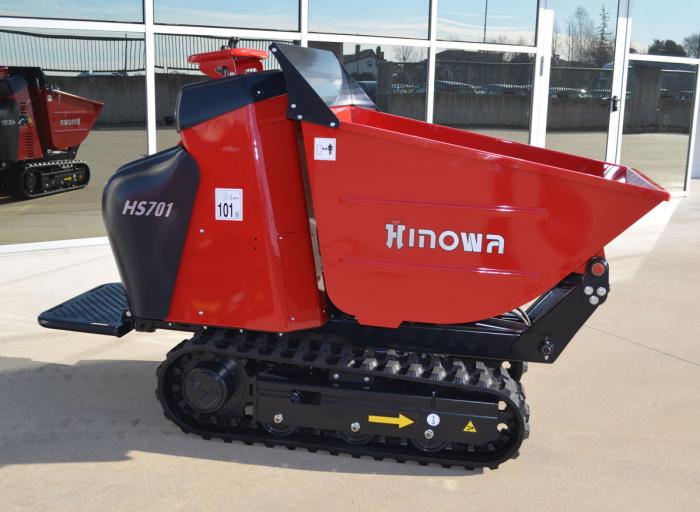

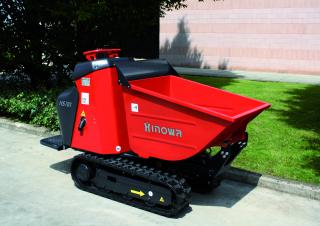

HS701 Hinowa HS701 Specifications & Technical Data (2014—2020)

Weight: 0.54t – Transport length: 1.86m – Transport width: 0.758m – Transport height: 1.3m – Net load: 0.7t – Dump capacity: 0.34m³

HS701

Years of manufacture: 2014—2020

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - HS701 Hinowa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.54 t

Transport length: 1.86 m

Transport width: 0.758 m

Transport height: 1.3 m

Net load: 0.7 t

Dump capacity: 0.34 m³

Travel speed: 3.3 km/h

Track width: 180 mm

Model series: HS

Engine manuf.: Honda

Engine type: GX270

Engine power: 6.1 kW

Displacement: 0.27 l

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: Yes
Bucket: Yes
Heated dump body: No
Electric starter: Yes
Trough liftable: Yes
Aircondition: No

Hinowa HS701 FAQ

When was the Hinowa HS701 manufactured?

The Hinowa HS701 was manufactured from 2014 to 2020.

How much does the Hinowa HS701 tracked dumper weigh?

The Hinowa HS701 tracked dumper weighs 0.54 tons.

What are the transport dimensions of the Hinowa HS701 tracked dumper?

The Hinowa HS701 has transport dimensions of 1.86 meters in length, 0.76 meters in width, and 1.3 meters in height.

What is the travel speed of the Hinowa HS701 tracked dumper?

The Hinowa HS701 tracked dumper has a travel speed of 3.3 km/h.

What is the track width of the Hinowa HS701's undercarriage?

The Hinowa HS701 has a track width of 180 mm.

What is the material handling capacity of the Hinowa HS701 tracked dumper?

The Hinowa HS701 tracked dumper has a net load capacity of 0.7 tons and a dump capacity of 0.34 cubic meters.
