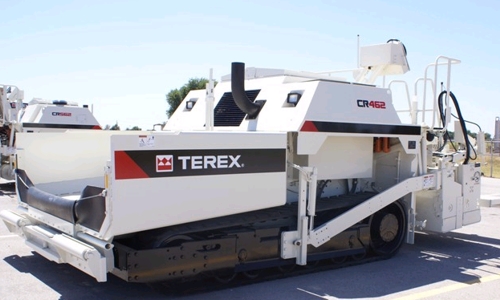

Terex CR462 Specifications & Technical Data (2008-2023)

Technical specs - CR462 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17.554 t

Transport length: 5.69 m

Transport width: 3.15 m

Transport height: 2.794 m

Standard width: 3.05 m

Max. width: 8.5 m

Drive: DE

Bunker capacity: 6.2 m³

Operating speed: 53 m/min

Type of screed: V

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 164 kW

Revolutions at max torque: 2200 rpm

More technical details, like: hydr. extension from, hydr. extension up to, soil pressure, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: No
High compaction: No
Spray unit: No
Tamper: No

Download datasheets (PDF)

CR462 Terex Specification for North America (EN)

Terex CR462 FAQ

When was the Terex CR462 manufactured?

The Terex CR462 was manufactured from 2008 to 2023.

How much does the Terex CR462 weigh?

The Terex CR462 weighs 17.55 tons.

What are the transport dimensions of the Terex CR462?

The Terex CR462 has a transport length of 5.69 meters, a transport width of 3.15 meters, and a transport height of 2.79 meters.

What is the operating speed of the Terex CR462 tracked asphalt paver?

The Terex CR462 has an operating speed of 53 meters per minute.

What type of drive system does the Terex CR462 tracked asphalt paver use in its undercarriage?

The Terex CR462 uses a diesel electric drive system in its undercarriage.

What are the paving performance specifications of the Terex CR462 asphalt paver?

The Terex CR462 asphalt paver features a vibratory screed, a standard paving width of 3.05 meters, a maximum paving width of 8.5 meters, and an operating speed of 53 meters per minute.
