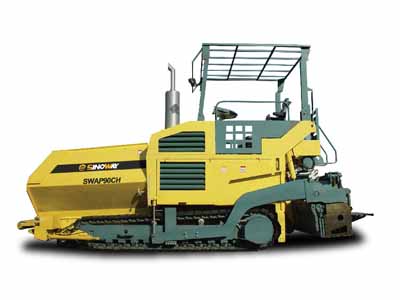

Sinoway SWAP90CH Specifications & Technical Data (2018-2026)

Technical specs - SWAP90CH Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 24 t

Transport length: 6.47 m

Transport width: 3.26 m

Transport height: 3.57 m

Standard width: 3.26 m

Max. width: 9 m

Drive: DM

Operating speed: 18 m/min

Type of screed: V/T

Model series: SWAP

Engine manuf.: Deutz

Engine type: BF6M1013

Engine power: 140 kW

Revolutions at max torque: 2200 rpm

No. of cylinders: 6

More technical details, like: hydr. extension from, hydr. extension up to, soil pressure, bunker capacity, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: Yes
High compaction: No
Spray unit: No
Tamper: Yes

Download datasheets (PDF)

SWAP90CH Sinoway Specification for Europe (EN)

Sinoway SWAP90CH FAQ

When was the Sinoway SWAP90CH manufactured?

The Sinoway SWAP90CH was first produced in 2018.

How much does the Sinoway SWAP90CH weigh?

The Sinoway SWAP90CH weighs 24 tons.

What are the transport dimensions of the Sinoway SWAP90CH tracked asphalt paver?

The Sinoway SWAP90CH has a transport length of 6.47 meters, a transport width of 3.26 meters, and a transport height of 3.57 meters.

What is the operating speed of the Sinoway SWAP90CH tracked asphalt paver?

The Sinoway SWAP90CH has an operating speed of 18 meters per minute.

What is the undercarriage drive type of the Sinoway SWAP90CH?

The Sinoway SWAP90CH has a diesel mechanical drive.

What are the paving performance specifications of the Sinoway SWAP90CH tracked asphalt paver?

The Sinoway SWAP90CH features a tamper and vibratory screed, has a standard paving width of 3.26 meters, a maximum paving width of 9 meters, and operates at a speed of 18 meters per minute.

How much is a Sinoway SWAP90CH Tracked Asphalt Paver (2018u20132025) worth?

The residual value of the Sinoway SWAP90CH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
