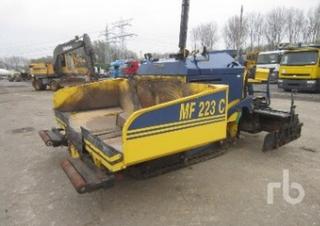

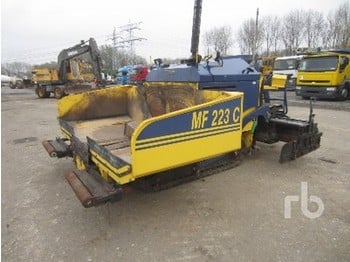

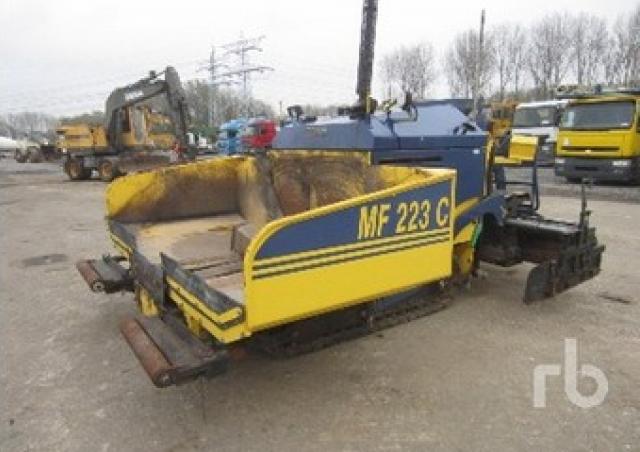

Marini MF 223 C Specifications & Technical Data (2006-2007)

Technical specs - MF 223 C Marini

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5 t

Standard width: 1.4 m

Max. width: 4 m

Hydr. extension from: 1.4 m

Hydr. extension up to: 2.6 m

Drive: DH

Model series: MF

Engine manuf.: Perkins

Engine type: 404C-22

Engine power: 37.3 kW

Displacement: 2.2 l

Revolutions at max torque: 1800 rpm

More technical details, like: transport length, transport width, transport height, soil pressure, bunker capacity, operating speed, type of screed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: Yes
High compaction: No
Spray unit: No
Tamper: No

Marini MF 223 C FAQ

When was the Marini MF 223 C manufactured?

The Marini MF 223 C was manufactured from 2006 to 2007.

How much does the Marini MF 223 C weigh?

The Marini MF 223 C weighs 5 tons.

What type of drive system does the Marini MF 223 C tracked asphalt paver use in its undercarriage?

The Marini MF 223 C uses a diesel hydraulic drive system in its undercarriage.

What are the paving width capabilities of the Marini MF 223 C asphalt paver?

The Marini MF 223 C has a standard paving width of 1.4 meters, a maximum paving width of 4 meters, and a hydraulic extension range from 1.4 to 2.6 meters.

How much is a Marini MF 223 C Tracked Asphalt Paver (2006u20132007) worth?

The residual value of the Marini MF 223 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
