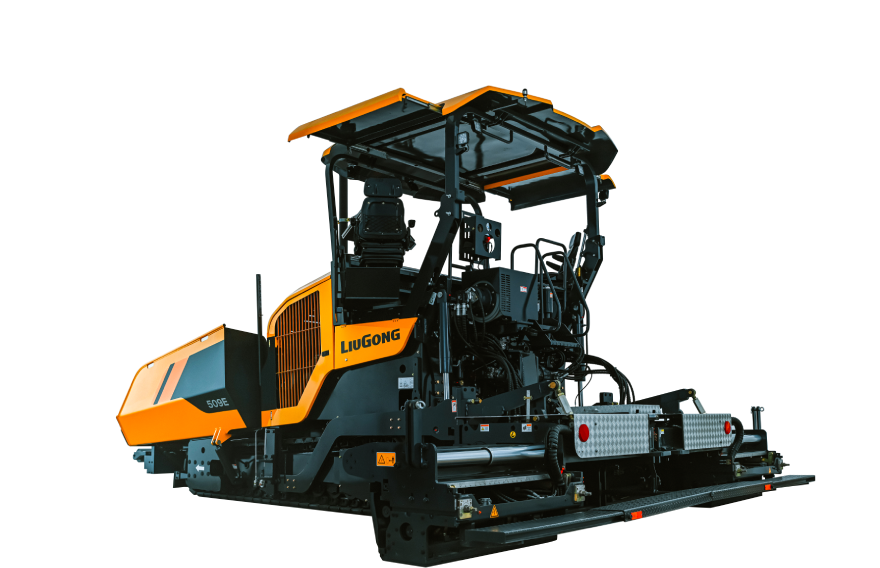

509E Liugong 509E Specifications & Technical Data (2023—2026)

Weight: 23.5t – Transport length: 7.56m – Transport width: 2.55m – Transport height: 3.17m – Standard width: 3.54m – Max. width: 9m

Tracked Asphalt Pavers Liugong 509E

Visit Liugong live at

Technical specs - 509E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.5 t
Transport length
7.56 m
Transport width
2.55 m
Transport height
3.17 m
Standard width
3.54 m
Max. width
9 m
Operating speed
29 m/min
Model series
E
Engine manuf.
Cummins
Engine type
B7
Engine power
169 kW
Revolutions at max torque
1200 rpm
Max. torque
895 Nm
No. of cylinders
6
Emission level
Tier 3/Stage III

More technical details, like: hydr. extension from, hydr. extension up to, drive, soil pressure, bunker capacity, type of screed, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Vibration
No
High compaction
No
Spray unit
No
Tamper
Yes

Download datasheets (PDF)
