SD 2500 CS Dynapac SD 2500 CS Specifications & Technical Data (2010—2016)

Weight: 18.5t – Transport length: 6.12m – Transport width: 2.55m – Transport height: 3.1m – Standard width: 2.55m – Max. width: 8.8m

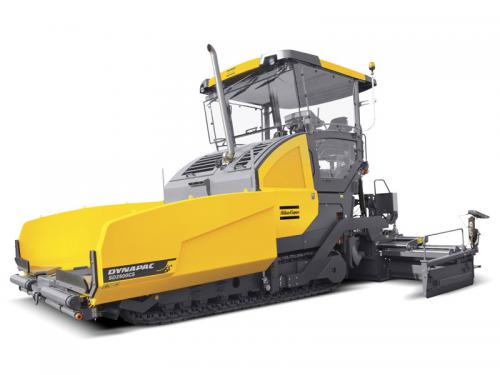

Tracked Asphalt Pavers Dynapac SD 2500 CS
Tracked Asphalt Pavers Dynapac SD 2500 CS
Tracked Asphalt Pavers Dynapac SD 2500 CS
Tracked Asphalt Pavers Dynapac SD 2500 CS

Visit Dynapac live at

Technical specs - SD 2500 CS Dynapac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.5 t
Transport length
6.12 m
Transport width
2.55 m
Transport height
3.1 m
Standard width
2.55 m
Max. width
8.8 m
Hydr. extension from
2.55 m
Hydr. extension up to
5.1 m
Drive
DH
Bunker capacity
6.5 m³
Operating speed
28 m/min
Type of screed
V/T
Model series
SD
Engine manuf.
Cummins
Engine type
QSB6.7-C190
Engine power
142 kW
Displacement
6.7 l
Revolutions at max torque
2000 rpm

More technical details, like: soil pressure, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
Yes
Vibration
Yes
High compaction
No
Spray unit
No
Tamper
Yes

Download datasheets (PDF)

Dynapac SD 2500 CS FAQ

When was the Dynapac SD 2500 CS manufactured?

The Dynapac SD 2500 CS was manufactured from 2010 to 2016.

How much does the Dynapac SD 2500 CS weigh?

The Dynapac SD 2500 CS weighs 18.5 tons.

What are the transport dimensions of the Dynapac SD 2500 CS?

The Dynapac SD 2500 CS has a transport length of 6.12 meters, a transport width of 2.55 meters, and a transport height of 3.1 meters.

What is the operating speed of the Dynapac SD 2500 CS?

The Dynapac SD 2500 CS has an operating speed of 28 meters per minute.

What type of drive system does the Dynapac SD 2500 CS use in its undercarriage?

The Dynapac SD 2500 CS uses a diesel hydraulic drive system in its undercarriage.

What are the paving performance specifications of the Dynapac SD 2500 CS?

The Dynapac SD 2500 CS features a tamper and vibratory screed, has a standard paving width of 2.55 meters, a maximum width of 8.8 meters with hydraulic extensions ranging from 2.55 to 5.1 meters, and operates at a speed of 28 meters per minute.

How much is a Dynapac SD 2500 CS Tracked Asphalt Paver (2010u20132016) worth?

The residual value of the Dynapac SD 2500 CS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
