DF 45 CS Dynapac DF 45 CS Specifications & Technical Data (2009—2010)

Weight: 5.4t – Transport length: 4.26m – Transport width: 1.2m – Transport height: 1.86m – Standard width: 1.2m – Max. width: 2.85m

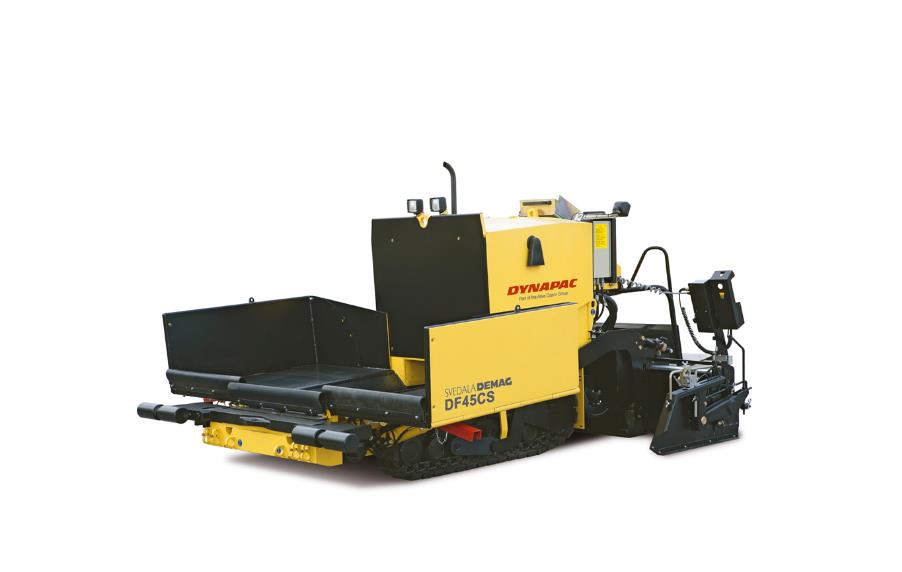

Tracked Asphalt Pavers Dynapac DF 45 CS

Visit Dynapac live at

Technical specs - DF 45 CS Dynapac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.4 t
Transport length
4.26 m
Transport width
1.2 m
Transport height
1.86 m
Standard width
1.2 m
Max. width
2.85 m
Drive
DH
Bunker capacity
2.3 m³
Operating speed
16 m/min
Model series
DF
Engine manuf.
Deutz
Engine type
TCD2011 L03
Engine power
45 kW
Displacement
3.6 l
Revolutions at max torque
2300 rpm

More technical details, like: hydr. extension from, hydr. extension up to, soil pressure, type of screed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Vibration
No
High compaction
No
Spray unit
No
Tamper
No

Download datasheets (PDF)

Dynapac DF 45 CS FAQ

When was the Dynapac DF 45 CS manufactured?

The Dynapac DF 45 CS was manufactured from 2009 to 2010.

How much does the Dynapac DF 45 CS weigh?

The Dynapac DF 45 CS weighs 5.4 tons.

What are the transport dimensions of the Dynapac DF 45 CS?

The Dynapac DF 45 CS has a transport length of 4.26 meters, a transport width of 1.2 meters, and a transport height of 1.86 meters.

What is the operating speed of the Dynapac DF 45 CS?

The Dynapac DF 45 CS has an operating speed of 16 meters per minute.

What type of undercarriage drive system does the Dynapac DF 45 CS have?

The Dynapac DF 45 CS has a diesel hydraulic undercarriage drive system.

What are the paving performance specifications of the Dynapac DF 45 CS asphalt paver?

The Dynapac DF 45 CS has a standard paving width of 1.2 meters, a maximum paving width of 2.85 meters, operates at a speed of 16 meters per minute, and has a bunker capacity of 2.3 cubic meters.

How much is a Dynapac DF 45 CS Tracked Asphalt Paver (2009u20132010) worth?

The residual value of the Dynapac DF 45 CS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
