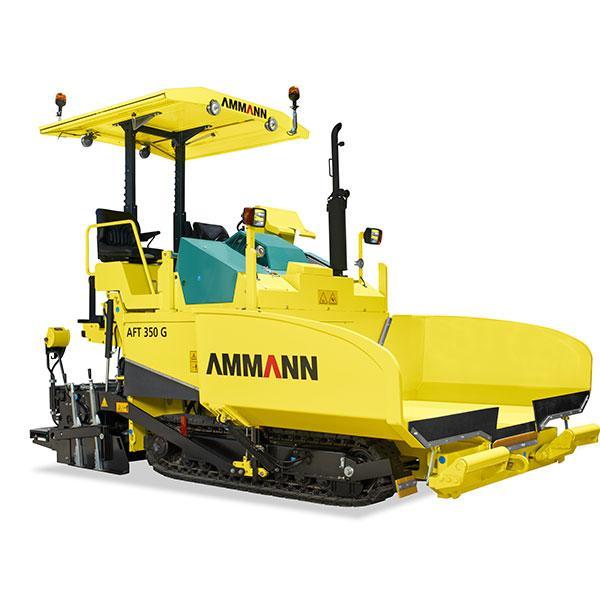

AFT 350 E/G Ammann AFT 350 E/G Specifications & Technical Data (2009—2016)
Technical specs - AFT 350 E/G Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.5 t
- Transport length
- 5.03 m
- Transport width
- 1.85 m
- Transport height
- 3.48 m
- Standard width
- 1.83 m
- Max. width
- 3.5 m
- Hydr. extension from
- 0.8 m
- Hydr. extension up to
- 4.5 m
- Bunker capacity
- 4 m³
- Operating speed
- 35 m/min
- Model series
- AFT
- Engine manuf.
- Deutz
- Engine type
- TD2011 L04i
- Engine power
- 52 kW
- Displacement
- 3.62 l
- Revolutions at max torque
- 1600 rpm
More technical details, like: drive, soil pressure, type of screed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
Yes
- Vibration
-
Yes
- High compaction
-
No
- Spray unit
-
No
- Tamper
-
Yes
