G-440 Gradall excavator specs & dimensions (1977 - 1987)

Weight: 39.5t – Transport length: 6.6m – Transport width: 2.8m – Transport height: 3m – Engine manuf.: GM – Engine type: 3-53N…

Weight: 39.5t – Transport length: 6.6m – Transport width: 2.8m – Transport height: 3m – Engine manuf.: GM – Engine type: 3-53N

Check out detailed specifications, information and technical data for Gradall G-440 excavator manufactured between 1977 - 1987. Get more in-depth insight with Gradall G-440 digger specifications. See information, like: Weight: 39.5t – Transport length: 6.6m – Transport width: 2.8m – Transport height: 3m – Engine manuf.: GM – Engine type: 3-53N and more.

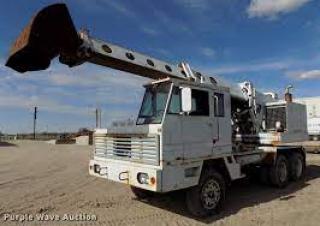

Telescopic Excavators Gradall G-440

Technical specs - G-440 Gradall

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
39.5 t
Transport length
6.6 m
Transport width
2.8 m
Transport height
3 m
Engine manuf.
GM
Engine type
3-53N
Engine power
63.4 kW
Displacement
2.6 l
Revolutions at max torque
1600 rpm
Cylinder bore x stroke
98 x 114 mm

More technical details, like: track width, standard tyres, bucket capacity, mobile/crawler, model series, dimension lxwxh, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. std. telescopic boom

Special equipment

Overload alert
No
Aircondition
No

Download datasheets (PDF)

Gradall G-440 overview

Technical information

Crawler

Tractor-type crawler with triple-grouser pads. Automatic digging brake for each track, spring set, hydraulic release; each brake operates independently. Lifetime-lubricated sealed rollers, hydraulic track adjustment, track guides. Track length: 10'3 (3 m). Pad width: 24" (61 cm) or 30" (76 cm). Overall width, either pad size: 9'2" (2.8 m). Ground clearance: 15" (38 cm).


Cab

Cab

All-weather cab with safety glass windows, skylight, acoustical treatment, heater and defroster. Front window removable, stored in cab.


Controls

3 levers, 2 pairs of pedals for all boom and upperstructure movements. 2 propel levers, one per track. All controls are self-centering: when controls are released, machine movements stop automatically. Foot selector for travel speed. Engine controls: key operated ignition/starter switch with indicator light, throttle. Gauges for engine temperature, oil pressure, air pressure; voltmeter, hour meter.
