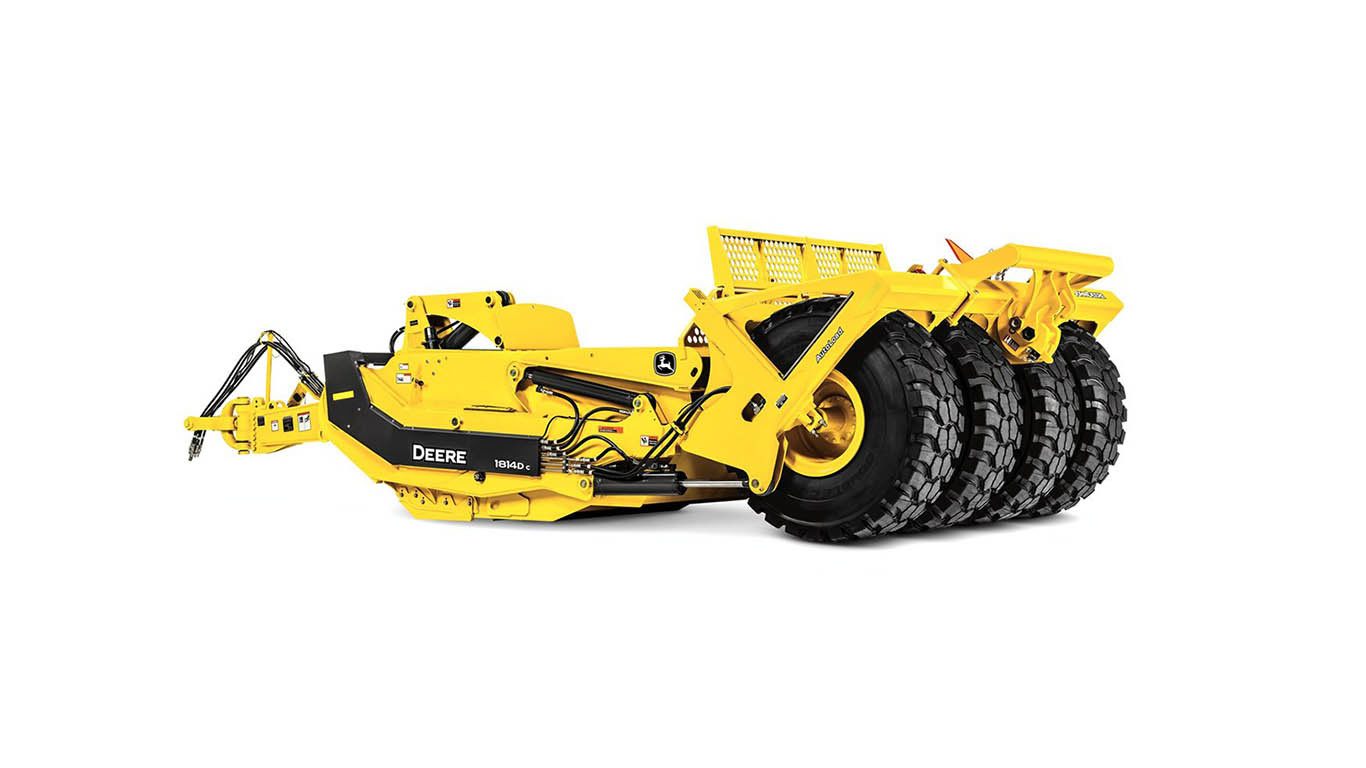

1814D C John Deere Construction 1814D C Specifications & Technical Data (2015—2026)

Weight: 9.53t – Standard tyres: 17.5x25-in. 16-Ply E3 Bias – Dump capacity: 13.8m³ – Transport length: 7.67m – Transport width: 4.83m – Transport height: 2.29m

Technical specs - 1814D C John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.53 t
Standard tyres
17.5x25-in. 16-Ply E3 Bias
Dump capacity
13.8 m³
Transport length
7.67 m
Transport width
4.83 m
Transport height
2.29 m
Turning radius outside
11.3 m
Model series
D
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: power of 2nd engine, cutting width, max. total weight, travel speed, net load, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
