639D Caterpillar 639D Specifications & Technical Data (1979—2026)

Weight: 55.26t – Standard tyres: 37.25-35 36PR – Power of 2nd engine: 187kW – Dump capacity: 26m³ – Cutting width: 3510mm – max. total weight: 89.28t

Technical specs - 639D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
55.26 t
Standard tyres
37.25-35 36PR
Power of 2nd engine
187 kW
Dump capacity
26 m³
Cutting width
3510 mm
max. total weight
89.28 t
Transport length
14.53 m
Transport width
3.66 m
Transport height
3.96 m
Travel speed
50 km/h
Turning radius outside
12.4 m
Net load
34.02 t
Engine manuf.
Caterpillar
Engine type
3408
Engine power
335 kW
Displacement
18 l
Revolutions at max torque
2000 rpm

More technical details, like: model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

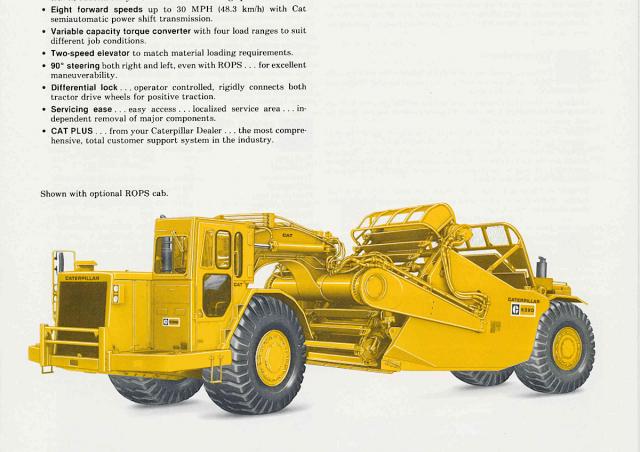

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Aircondition
No
