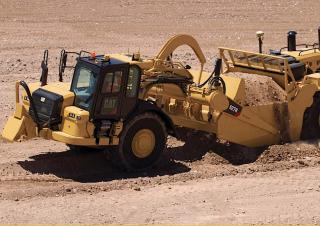

Caterpillar 627H
- Weight:
- 39.899 t
- Power of 2nd engine:
- 216 kW
- Dump capacity:
- 18.3 m³
- Cutting width:
- 3136 mm
627H Caterpillar 627H Specifications & Technical Data (2012—2026)
Technical specs - 627H Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 39.899 t
- Power of 2nd engine
- 216 kW
- Dump capacity
- 18.3 m³
- Cutting width
- 3136 mm
- max. total weight
- 67.88 t
- Transport length
- 15.58 m
- Transport width
- 3.57 m
- Transport height
- 4.03 m
- Travel speed
- 53.9 km/h
- Net load
- 26.13 t
- Engine manuf.
- Caterpillar
- Engine type
- C13 Acert
- Engine power
- 304 kW
- Displacement
- 12.5 l
- Cylinder bore x stroke
- 130x157 mm
More technical details, like: standard tyres, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Aircondition
-
No
