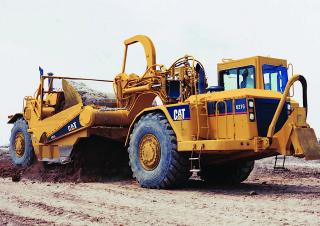

Caterpillar 627G
- Weight:
- 37.545 t
- Power of 2nd engine:
- 186 kW
- Dump capacity:
- 17 m³
- Cutting width:
- 3023 mm
627G Caterpillar 627G Specifications & Technical Data (2003—2026)
Technical specs - 627G Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 37.545 t
- Power of 2nd engine
- 186 kW
- Dump capacity
- 17 m³
- Cutting width
- 3023 mm
- max. total weight
- 62.1 t
- Transport length
- 12.92 m
- Transport width
- 3.47 m
- Transport height
- 3.71 m
- Travel speed
- 51.5 km/h
- Turning radius outside
- 10.9 m
- Net load
- 23.95 t
- Engine manuf.
- Caterpillar
- Engine type
- 3406E
- Engine power
- 272 kW
- Displacement
- 14.6 l
- Cylinder bore x stroke
- 137x165 mm
- Emission level
- Tier 2. Stage II
More technical details, like: standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Aircondition
-
No
