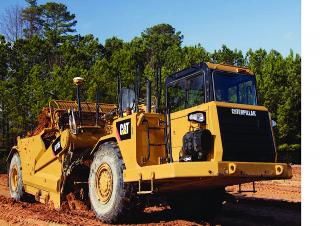

613G Caterpillar 613G Specifications & Technical Data (2008—2026)
Technical specs - 613G Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.626 t
- Dump capacity
- 8.4 m³
- Cutting width
- 2430 mm
- max. total weight
- 16.89 t
- Transport length
- 10.42 m
- Transport width
- 2.43 m
- Transport height
- 3.19 m
- Travel speed
- 39.3 km/h
- Turning radius outside
- 8.93 m
- Net load
- 11.98 t
- Engine manuf.
- Caterpillar
- Engine type
- C6.6 ATAAC
- Engine power
- 135 kW
- Displacement
- 6.6 l
- Cylinder bore x stroke
- 100x127 mm
More technical details, like: standard tyres, power of 2nd engine, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Aircondition
-
No
