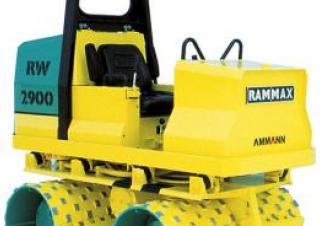

RW 2900 HF Rammax RW 2900 HF Specifications & Technical Data (1995—2009)

Weight: 3t – Transport length: 2.26m – Transport width: 1m – Transport height: 2.3m – Vibration: d – Travel speed: 27.6km/h

RW 2900 HF

Years of manufacture: 1995—2009

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - RW 2900 HF Rammax

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3 t

Transport length: 2.26 m

Transport width: 1 m

Transport height: 2.3 m

Vibration: d

Travel speed: 27.6 km/h

Frequency: 41 Hz

Roller width: 1.2 m

Amplitude: 1.7 mm

Statical line load: 15 kg/cm

Model series: RW

Engine manuf.: Kubota

Engine type: D1703

Engine power: 24.6 kW

Revolutions at max torque: 2900 rpm

More technical details, like: drive, rollers Ø, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model

Special equipment

Diesel particulate filter: No
Remote control: No

Download datasheets (PDF)

RW 2900 HF Rammax Specification for Europe (EN)

Rammax RW 2900 HF FAQ

When was the Rammax RW 2900 HF manufactured?

The Rammax RW 2900 HF was manufactured from 1995 to 2009.

How much does the Rammax RW 2900 HF weigh?

The Rammax RW 2900 HF weighs 3.0 tons.

What are the transport dimensions of the Rammax RW 2900 HF vibration trench roller?

The Rammax RW 2900 HF has transport dimensions of 2.26 meters in length, 1 meter in width, and 2.3 meters in height.

What is the travel speed of the Rammax RW 2900 HF vibration trench roller?

The Rammax RW 2900 HF has a travel speed of 27.6 km/h.

What are the compaction capabilities of the Rammax RW 2900 HF vibration trench roller?

The Rammax RW 2900 HF features a double vibration system operating at 41 Hz frequency with an amplitude of 1.7 mm and a statical line load of 15 kg/cm.

What is the roller width of the Rammax RW 2900 HF?

The Rammax RW 2900 HF has a roller width of 1.2 meters.

How much is a Rammax RW 2900 HF Vibration Trench Roller (1995u20132009) worth?

The residual value of the Rammax RW 2900 HF depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
