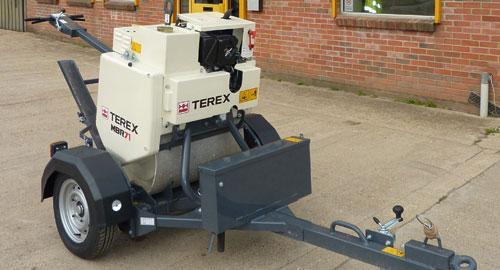

MBR 71 Terex MBR 71 Specifications & Technical Data (2004—2017)

Weight: 0.5t – Transport length: 2.18m – Transport width: 0.85m – Transport height: 1.3m – Vibration: e – Drive: A

Rollers Tandem Vibration Rollers Terex MBR 71

Technical specs - MBR 71 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.5 t
Transport length
2.18 m
Transport width
0.85 m
Transport height
1.3 m
Vibration
e
Drive
A
Steering
VL
Travel speed
3.2 km/h
Frequency
65 Hz
Roller width
0.71 m
Rollers Ø
0.575 m
Statical line load
7.2 kg/cm
Model series
MBR
Engine manuf.
Hatz
Engine type
1D41S
Engine power
6 kW
Displacement
0.413 l
Revolutions at max torque
2600 rpm

More technical details, like: turning radius outside, centrifugal force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Terex MBR 71 FAQ

When was the Terex MBR 71 manufactured?

The Terex MBR 71 was manufactured from 2004 to 2017.

How much does the Terex MBR 71 weigh?

The Terex MBR 71 weighs 0.5 tons.

What are the transport dimensions of the Terex MBR 71 tandem vibration roller?

The Terex MBR 71 has transport dimensions of 2.18 meters in length, 0.85 meters in width, and 1.3 meters in height.

What is the travel speed of the Terex MBR 71 tandem vibration roller?

The Terex MBR 71 tandem vibration roller has a travel speed of 3.2 km/h.

What type of drive system does the Terex MBR 71 have in its undercarriage?

The Terex MBR 71 has an all-wheel drive system in its undercarriage.

What type of steering does the Terex MBR 71 use for maneuverability?

The Terex MBR 71 uses front steering for maneuverability.

What are the compaction capabilities of the Terex MBR 71 tandem vibration roller?

The Terex MBR 71 features a single vibration system operating at a frequency of 65 Hz and has a statical line load of 7.2 kg/cm.

What are the roller specifications of the Terex MBR 71 tandem vibration roller?

The Terex MBR 71 has rollers that are 0.71 meters wide with a diameter of 0.575 meters.

How much is a Terex MBR 71 Tandem Vibration Roller (2004u20132017) worth?

The residual value of the Terex MBR 71 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Terex MBR 71 overview

Vibratory System

Drum Specifications

Single Drum (1-71 and MBR71) or Twin Drum (2-65) Drum widths from 650mm to 710mm - Operating weights from 476 to 700 kg. Powerful and reliable air cooled engines, with hydrostatic transmission for power. Superb service access and easy to service components. High quality heavy duty design - “rental tough”. Heavy duty vibration system with high centrifugal force, frequency and static linear load reduces the number of passes required. Ergonomic control lever for simple and easy operation of all functions.


Visibility

Optional Equipment

Hydraulic Breaker attachment, tool, valve and hosing - 30 l/min (MBR71) Tow behind trailer with breaker storage box (1-71 and MBR71) Electric starting with Hour Meter


Water Spray System

Standard Equipment

Gravity Fed Water System Drum Scraper Bars Front and Rear (both drums on 2-65) Removable plastic water tank for easy servicing (2-65 only) Low maintenance battery Emergency Release Free Wheel Valve (for Towing)* (*1-71 and MBR71 only) Integral lifting points
