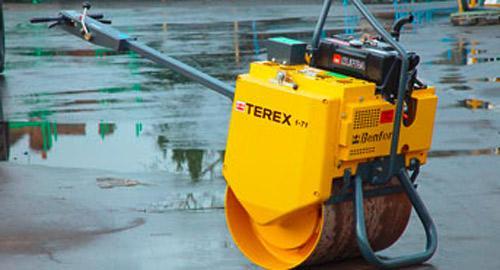

1-71 Terex 1-71 Specifications & Technical Data (2004—2014)

Model rating
10,00 / 10

Weight: 0.46t – Transport length: 2.18m – Transport width: 0.85m – Transport height: 1.3m – Vibration: e – Drive: E

Rollers Tandem Vibration Rollers Terex 1-71

Technical specs - 1-71 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.46 t
Transport length
2.18 m
Transport width
0.85 m
Transport height
1.3 m
Vibration
e
Drive
E
Steering
VL
Travel speed
3.2 km/h
Frequency
65 Hz
Roller width
0.71 m
Rollers Ø
0.575 m
Statical line load
6.7 kg/cm
Engine manuf.
Hatz
Engine type
1D41S
Engine power
6 kW
Displacement
0.413 l
Revolutions at max torque
2600 rpm

More technical details, like: turning radius outside, centrifugal force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Terex 1-71 FAQ

When was the Terex 1-71 manufactured?

The Terex 1-71 was manufactured from 2004 to 2014.

How much does the Terex 1-71 weigh?

The Terex 1-71 weighs 0.46 tons.

What are the transport dimensions of the Terex 1-71 tandem vibration roller?

The Terex 1-71 has a transport length of 2.18 meters, a transport width of 0.85 meters, and a transport height of 1.3 meters.

What is the travel speed of the Terex 1-71 tandem vibration roller?

The Terex 1-71 tandem vibration roller has a travel speed of 3.2 km/h.

What type of drive does the Terex 1-71 tandem vibration roller have?

The Terex 1-71 tandem vibration roller has a simple drive system.

What type of steering does the Terex 1-71 tandem vibration roller have?

The Terex 1-71 tandem vibration roller features front steering.

What are the vibration and statical line load specifications of the Terex 1-71 tandem vibration roller?

The Terex 1-71 tandem vibration roller has a single vibration system operating at a frequency of 65 Hz and a statical line load of 6.7 kg/cm.

What are the roller specifications of the Terex 1-71 tandem vibration roller?

The Terex 1-71 tandem vibration roller has rollers with a width of 0.71 meters and a diameter of 0.575 meters.

How much is a Terex 1-71 Tandem Vibration Roller (2004u20132014) worth?

The residual value of the Terex 1-71 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Terex 1-71 overview

Vibratory System

Drum Specifications

Single Drum (1-71 and MBR71) or Twin Drum (2-65) Drum widths from 650mm to 710mm - Operating weights from 476 to 700 kg. Powerful and reliable air cooled engines, with hydrostatic transmission for power. Superb service access and easy to service components. High quality heavy duty design - “rental tough”. Heavy duty vibration system with high centrifugal force, frequency and static linear load reduces the number of passes required. Ergonomic control lever for simple and easy operation of all functions.


Visibility

Optional Equipment

Hydraulic Breaker attachment, tool, valve and hosing - 30 l/min (MBR71) Tow behind trailer with breaker storage box (1-71 and MBR71) Electric starting with Hour Meter


Water Spray System

Standard Equipment

Gravity Fed Water System Drum Scraper Bars Front and Rear (both drums on 2-65) Removable plastic water tank for easy servicing (2-65 only) Low maintenance battery Emergency Release Free Wheel Valve (for Towing)* (*1-71 and MBR71 only) Integral lifting points
