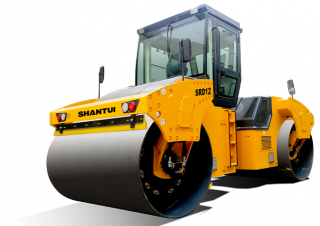

Shantui SRD12 Specifications & Technical Data (2023-2026)

Technical specs - SRD12 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12 t

Transport length: 5.06 m

Transport width: 2.3 m

Transport height: 3.1 m

Travel speed: 12 km/h

Frequency: 52 Hz

Roller width: 2.13 m

Rollers Ø: 1.26 m

Turning radius outside: 6.8 m

Centrifugal force: 130 kN

Engine manuf.: Cummins

Engine type: 4BTA3.9-C125-II

Engine power: 93 kW

Displacement: 3.9 l

Revolutions at max torque: 1500 rpm

Max. torque: 475 Nm

Cylinder bore x stroke: 102x120 mm

Emission level: Stage II / China II

More technical details, like: vibration, drive, steering, statical line load, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

SRD12 Shantui Specification for Global (EN)

Shantui SRD12 FAQ

When was the Shantui SRD12 manufactured?

The Shantui SRD12 was first produced in 2023.

How much does the Shantui SRD12 weigh?

The Shantui SRD12 weighs 12 tons.

What are the transport dimensions of the Shantui SRD12 tandem vibration roller?

The Shantui SRD12 has a transport length of 5.15 meters, a transport width of 2.3 meters, and a transport height of 3.1 meters.

What is the travel speed of the Shantui SRD12 tandem vibration roller?

The Shantui SRD12 tandem vibration roller has a travel speed of 11 km/h.

What is the turning radius of the Shantui SRD12 tandem vibration roller?

The Shantui SRD12 has an outside turning radius of 6.5 meters.

What are the compaction specifications of the Shantui SRD12 tandem vibration roller?

The Shantui SRD12 tandem vibration roller operates at a frequency of 52 Hz and generates a centrifugal force of 130 kN.
