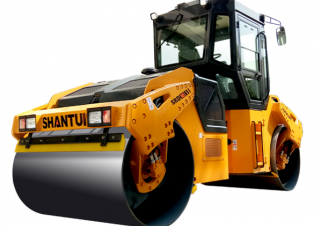

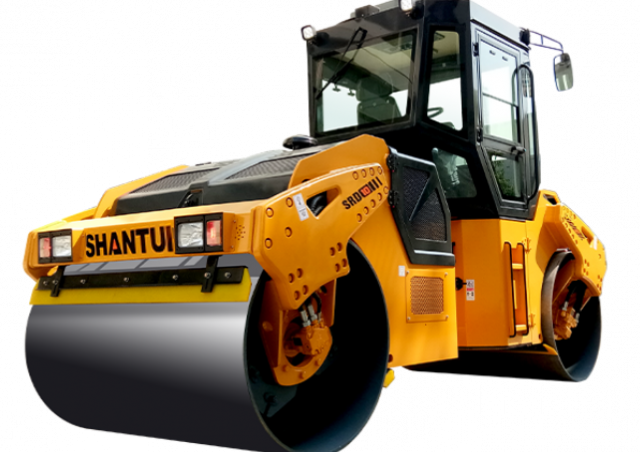

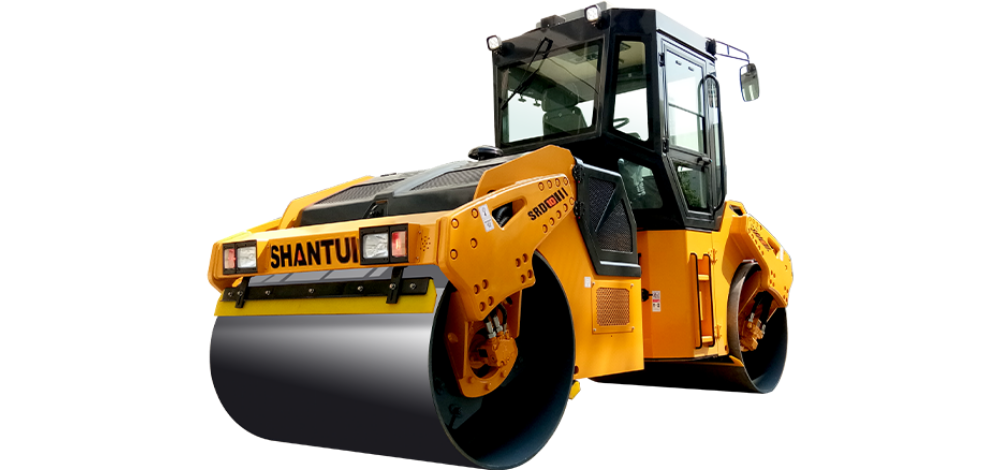

Shantui SRD10
- Weight:
- 10 t
- Transport length:
- 4.42 m
- Transport width:
- 1.9 m
- Transport height:
- 2.95 m
SRD10 Shantui SRD10 Specifications & Technical Data (2025—2026)
Technical specs - SRD10 Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10 t
- Transport length
- 4.42 m
- Transport width
- 1.9 m
- Transport height
- 2.95 m
- Travel speed
- 12 km/h
- Frequency
- 46 Hz
- Roller width
- 1.7 m
- Rollers Ø
- 1.1 m
- Turning radius outside
- 6 m
- Centrifugal force
- 110 kN
- Engine manuf.
- Cummins
- Engine type
- 4BTA3.9-C110-II
- Engine power
- 82 kW
- Displacement
- 46268 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 460/1500 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 102x120 mm
- Emission level
- EU II
More technical details, like: vibration, drive, steering, statical line load, model series, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
