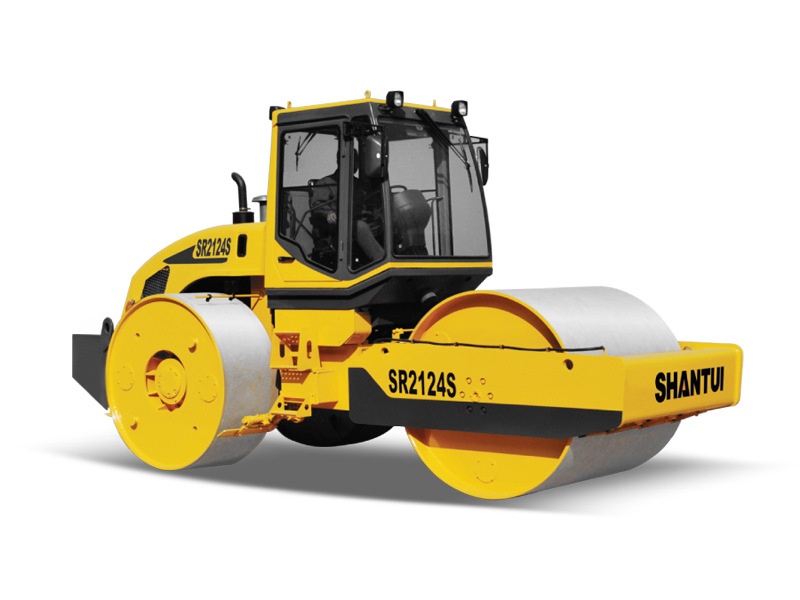

SR2124S Shantui SR2124S Specifications & Technical Data (2018—2020)

Weight: 24t – Transport length: 5.988m – Transport width: 2.32m – Transport height: 3.297m – Vibration: d – Drive: A

Rollers Tandem Vibration Rollers Shantui SR2124S

Technical specs - SR2124S Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24 t
Transport length
5.988 m
Transport width
2.32 m
Transport height
3.297 m
Vibration
d
Drive
A
Roller width
2.32 m
Rollers Ø
1.6 m
Statical line load
65 kg/cm
Engine manuf.
Yuchai
Engine type
YC6B125
Engine power
92 kW

More technical details, like: steering, travel speed, frequency, turning radius outside, centrifugal force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Shantui SR2124S FAQ

When was the Shantui SR2124S manufactured?

The Shantui SR2124S was manufactured from 2018 to 2020.

How much does the Shantui SR2124S weigh?

The Shantui SR2124S weighs 24 tons.

What are the transport dimensions of the Shantui SR2124S tandem vibration roller?

The Shantui SR2124S has a transport length of 5.99 meters, a transport width of 2.32 meters, and a transport height of 3.3 meters.

What type of drive system does the Shantui SR2124S have in its undercarriage?

The Shantui SR2124S has an all-wheel drive system in its undercarriage.

What are the compaction capabilities of the Shantui SR2124S tandem vibration roller?

The Shantui SR2124S features a double vibration system and has a statical line load of 65 kg/cm.

What are the roller specifications of the Shantui SR2124S tandem vibration roller?

The Shantui SR2124S has rollers that are 2.32 meters wide with a diameter of 1.6 meters.

How much is a Shantui SR2124S Tandem Vibration Roller (2018u20132020) worth?

The residual value of the Shantui SR2124S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
