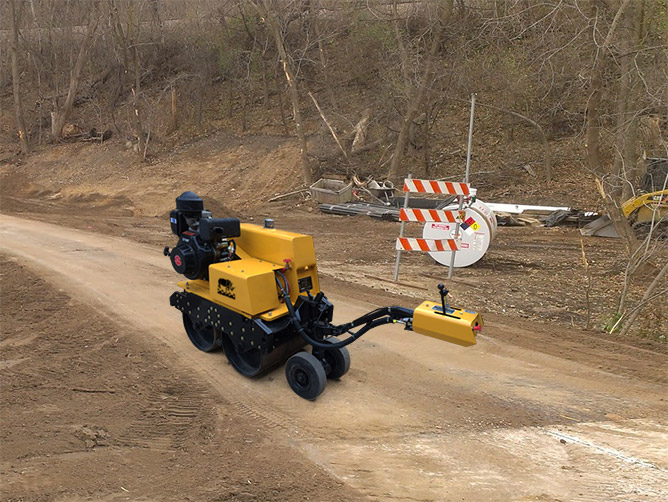

RHINO RWB75 Specifications & Technical Data (2017-2026)

Technical specs - RWB75 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.54 t

Transport length: 2.25 m

Transport width: 0.88 m

Transport height: 1.06 m

Frequency: 70 Hz

Roller width: 0.84 m

Rollers Ø: 0.56 m

Model series: RWB

Engine manuf.: RHINO

Engine type: 178F

Engine power: 4 kW

More technical details, like: vibration, drive, steering, travel speed, turning radius outside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: vibration, drive, steering, travel speed, turning radius outside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

RHINO RWB75 FAQ

When was the RHINO RWB75 manufactured?

The RHINO RWB75 was first produced in 2017.

How much does the RHINO RWB75 weigh?

The RHINO RWB75 weighs 0.54 tons.

What are the transport dimensions of the RHINO RWB75 tandem vibration roller?

The RHINO RWB75 has a transport length of 2.25 meters, a transport width of 0.88 meters, and a transport height of 1.06 meters.

What is the compaction frequency of the RHINO RWB75 tandem vibration roller?

The RHINO RWB75 tandem vibration roller operates at a compaction frequency of 70 Hz.

What are the roller specifications of the RHINO RWB75 tandem vibration roller?

The RHINO RWB75 has rollers that are 0.84 meters wide and 0.56 meters in diameter.

How much is a RHINO RWB75 Tandem Vibration Roller (2017u20132025) worth?

The residual value of the RHINO RWB75 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your RHINO RWB75 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare RHINO RWB75 with similar Tandem Vibration Rollers

RHINO RWB75

Weight:: 0.54 t

Transport length:: 2.25 m

Transport width:: 0.88 m

Transport height:: 1.06 m

Mecalac MBR71

Weight:: 0.51 t

Transport length:: 2.18 m

Transport width:: 0.85 m

Transport height:: 1.3 m

Doosan DX-500E

Weight:: 0.59 t

Transport length:: 2.21 m

Transport width:: 0.616 m

Transport height:: 1.15 m

Enar REN 550 GH

Weight:: 0.55 t

Transport length:: 2.15 m

Transport width:: 0.73 m

Transport height:: 0.6 m

RHINO RWB50

Weight:: 0.54 t

Transport length:: 2.145 m

Transport width:: 0.84 m

Transport height:: 1.93 m
