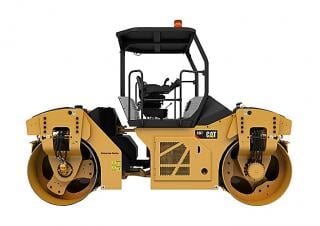

Caterpillar CB7 Specifications & Technical Data (2017-2026)

Technical specs - CB7 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.19 t

Transport length: 4.57 m

Transport width: 1.57 m

Transport height: 2.98 m

Travel speed: 12 km/h

Frequency: 53.3 Hz

Roller width: 1.5 m

Centrifugal force: 76.9 kN

Model series: CB

Engine manuf.: Caterpillar

Engine type: C3.4B

Engine power: 75 kW

Displacement: 3.4 l

Max. torque: 420/1400 Nm

Cylinder bore x stroke: 99x110 mm

Emission level: III b

More technical details, like: vibration, drive, steering, rollers Ø, turning radius outside, statical line load, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

CB7 Caterpillar Specification for Europe (EN)

Caterpillar CB7 FAQ

When was the Caterpillar CB7 manufactured?

The Caterpillar CB7 was first produced in 2017.

How much does the Caterpillar CB7 weigh?

The Caterpillar CB7 weighs 8.19 tons.

What are the transport dimensions of the Caterpillar CB7 tandem vibration roller?

The Caterpillar CB7 has a transport length of 4.57 meters, a transport width of 1.57 meters, and a transport height of 2.98 meters.

What is the travel speed of the Caterpillar CB7 tandem vibration roller?

The Caterpillar CB7 tandem vibration roller has a travel speed of 12 km/h.

What are the compaction capabilities of the Caterpillar CB7 tandem vibration roller?

The Caterpillar CB7 tandem vibration roller operates at a frequency of 53.3 Hz and generates a centrifugal force of 76.9 kN.

What is the roller width of the Caterpillar CB7 tandem vibration roller?

The Caterpillar CB7 tandem vibration roller has a roller width of 1.5 meters.

How much is a Caterpillar CB7 Tandem Vibration Roller (2017u20132025) worth?

The residual value of the Caterpillar CB7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Caterpillar CB7 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare Caterpillar CB7 with similar Tandem Vibration Rollers

Caterpillar CB7

Weight:: 8.19 t

Transport length:: 4.57 m

Transport width:: 1.57 m

Transport height:: 2.98 m

JCB VMT 860

Weight:: 8.75 t

Transport length:: 4.23 m

Transport width:: 1.845 m

Transport height:: 2.95 m

Volvo DD85

Weight:: 8.7 t

Transport length:: 4.216 m

Transport width:: 1.81 m

Transport height:: 3 m

Lebrero VTA 80

Weight:: 8.4 t

Transport length:: 4.46 m

Transport width:: 1.63 m

Transport height:: 2.81 m

Hamm DVO 6.4

Weight:: 7.4 t
