CB54XW Caterpillar CB54XW Specifications & Technical Data (2009—2017)

Weight: 11.9t – Transport length: 4.93m – Transport width: 2.2m – Transport height: 3.07m – Steering: KL – Travel speed: 13km/h

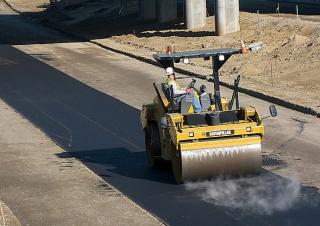

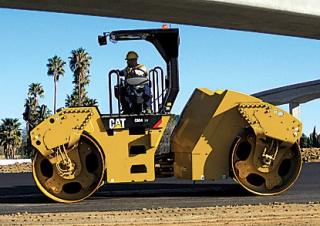

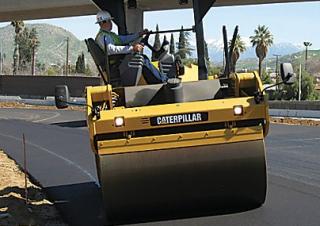

Rollers Tandem Vibration Rollers Caterpillar CB54XW

CB54XW

Years of manufacture: 2009—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CB54XW Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.9 t

Transport length: 4.93 m

Transport width: 2.2 m

Transport height: 3.07 m

Steering: KL

Travel speed: 13 km/h

Frequency: 42 Hz

Roller width: 2 m

Rollers Ø: 1.3 m

Statical line load: 29.7 kg/cm

Centrifugal force: 103.3 kN

Model series: CB

Engine manuf.: Caterpillar

Engine type: C4.4 Acert

Engine power: 98 kW

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

More technical details, like: vibration, drive, turning radius outside, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

CB54XW Caterpillar Specification for Europe (EN)

Caterpillar CB54XW FAQ

When was the Caterpillar CB54XW manufactured?

The Caterpillar CB54XW was manufactured from 2009 to 2017.

How much does the Caterpillar CB54XW weigh?

The Caterpillar CB54XW weighs 11.9 tons.

What are the transport dimensions of the Caterpillar CB54XW tandem vibration roller?

The Caterpillar CB54XW has a transport length of 4.93 meters, a transport width of 2.2 meters, and a transport height of 3.07 meters.

What is the travel speed of the Caterpillar CB54XW tandem vibration roller?

The Caterpillar CB54XW tandem vibration roller has a travel speed of 13 km/h.

What type of steering system does the Caterpillar CB54XW have?

The Caterpillar CB54XW features an articulated-frame steering system.

What are the compaction capabilities of the Caterpillar CB54XW tandem vibration roller?

The Caterpillar CB54XW tandem vibration roller operates at a frequency of 42 Hz, generates a centrifugal force of 103.3 kN, and has a statical line load of 29.7 kg/cm.

What are the roller specifications of the Caterpillar CB54XW tandem vibration roller?

The Caterpillar CB54XW has rollers that are 2 meters wide with a diameter of 1.3 meters.

How much is a Caterpillar CB54XW Tandem Vibration Roller (2009u20132017) worth?

The residual value of the Caterpillar CB54XW depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
