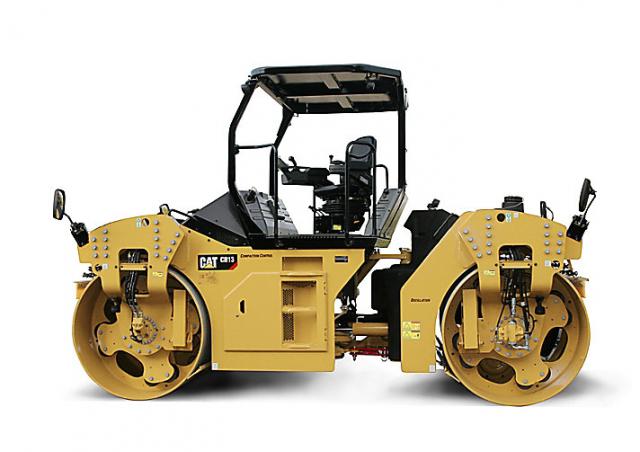

Caterpillar CB13 Specifications & Technical Data (2019-2026)

Technical specs - CB13 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.9 t

Transport length: 4.742 m

Transport width: 2.325 m

Transport height: 3.068 m

Vibration: e/d

Travel speed: 13 km/h

Frequency: 63.3 Hz

Roller width: 2 m

Rollers Ø: 1.3 m

Statical line load: 34 kg/cm

Centrifugal force: 110 kN

Model series: CB

Engine manuf.: Caterpillar

Engine type: C4.4 Acert

Engine power: 106 kW

No. of cylinders: 4

Cylinder bore x stroke: 105x127 mm

More technical details, like: drive, steering, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: Yes
Compression control: No
Aircondition: No

Download specalog and datasheets (PDF)

CB13 Caterpillar Specification for North America (EN)

Caterpillar CB13 FAQ

When was the Caterpillar CB13 manufactured?

The Caterpillar CB13 was first produced in 2019.

How much does the Caterpillar CB13 weigh?

The Caterpillar CB13 weighs 12.9 tons.

What are the transport dimensions of the Caterpillar CB13 tandem vibration roller?

The Caterpillar CB13 has a transport length of 4.74 meters, a transport width of 2.33 meters, and a transport height of 3.07 meters.

What is the travel speed of the Caterpillar CB13 tandem vibration roller?

The Caterpillar CB13 has a travel speed of 13 km/h.

What are the compaction capabilities of the Caterpillar CB13 tandem vibration roller?

The Caterpillar CB13 features double and single vibration modes, operates at a frequency of 63.3 Hz, generates a centrifugal force of 110 kN, and has a statical line load of 34 kg/cm.

What are the roller specifications of the Caterpillar CB13 tandem vibration roller?

The Caterpillar CB13 has rollers that are 2 meters wide with a diameter of 1.3 meters.

How much is a Caterpillar CB13 Tandem Vibration Roller (2019u20132025) worth?

The residual value of the Caterpillar CB13 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
