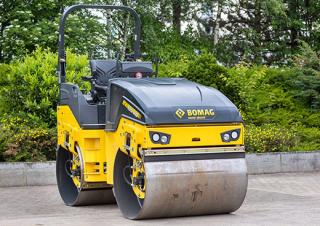

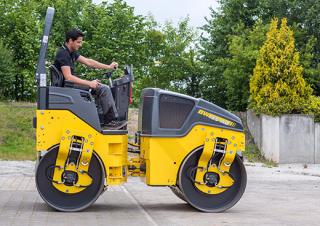

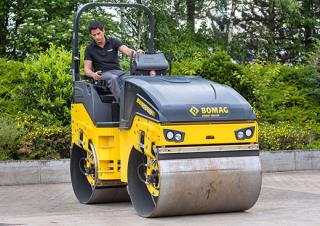

BW 135 AD-5 Bomag BW 135 AD-5 Specifications & Technical Data (2016—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 135 AD-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4 t
- Transport length
- 2.84 m
- Transport width
- 1.39 m
- Transport height
- 2.7 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 56 Hz
- Roller width
- 1.3 m
- Rollers Ø
- 0.9 m
- Turning radius outside
- 2.665 m
- Statical line load
- 15.4 kg/cm
- Centrifugal force
- 42 kN
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- V2203
- Engine power
- 33.3 kW
- Revolutions at max torque
- 2400 rpm
- Emission level
- III/Tier 4i
More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
