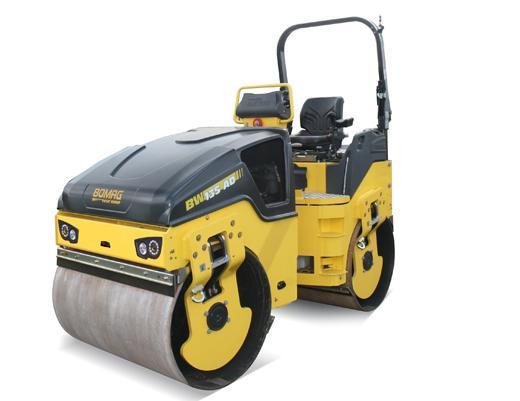

BW 135 AD-5 Bomag BW 135 AD-5 Specifications & Technical Data (2012—2016)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 135 AD-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.6 t
- Transport length
- 2.84 m
- Transport width
- 1.39 m
- Transport height
- 2.7 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 52 Hz
- Roller width
- 1.3 m
- Rollers Ø
- 0.9 m
- Turning radius outside
- 2.665 m
- Statical line load
- 15 kg/cm
- Centrifugal force
- 42 kN
- Model series
- BW

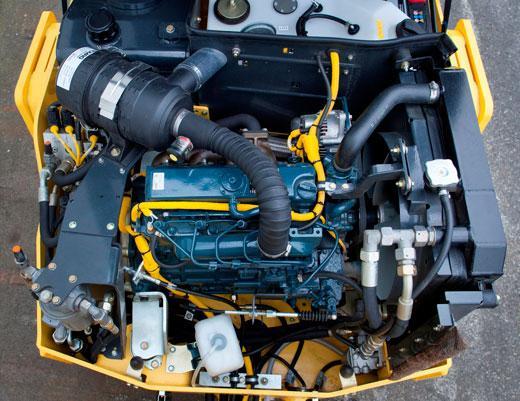

- Engine manuf.
- Kubota
- Engine type
- V2203
- Engine power
- 34 kW
- Emission level
- III/Tier 4i
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Bomag BW 135 AD-5 FAQ
How much does the Bomag BW 135 AD-5 weigh?
What are the transport dimensions of the Bomag BW 135 AD-5?
What is the travel speed of the Bomag BW 135 AD-5 tandem vibration roller?
What type of undercarriage drive does the Bomag BW 135 AD-5 have?
What are the maneuverability specifications of the Bomag BW 135 AD-5 tandem vibration roller?
What are the compaction capabilities of the Bomag BW 135 AD-5 tandem vibration roller?
What are the roller specifications of the Bomag BW 135 AD-5?
