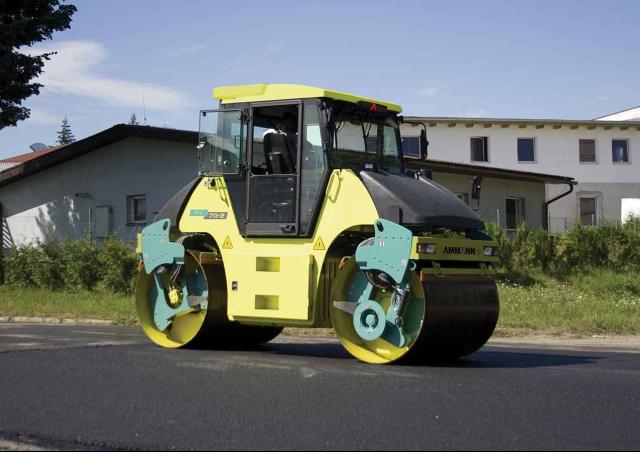

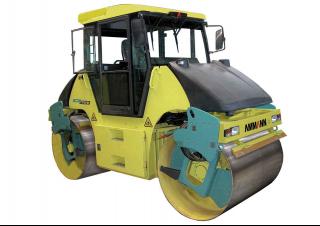

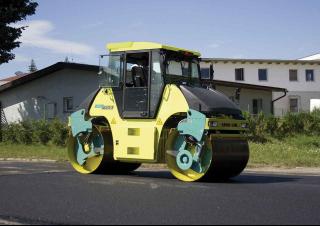

AV 70-2 Ammann AV 70-2 Specifications & Technical Data (2008—2010)
.jpg)
.jpg)
Technical specs - AV 70-2 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.2 t
- Transport length
- 3.95 m
- Transport width
- 1.59 m
- Transport height
- 2.9 m
- Vibration
- d
- Steering
- DSL
- Travel speed
- 10 km/h
- Frequency
- 50 Hz
- Roller width
- 1.45 m
- Rollers Ø
- 1.15 m
- Turning radius outside
- 2.59 m
- Statical line load
- 24.6 kg/cm
- Centrifugal force
- 46 kN
- Model series
- AV
- Engine manuf.
- Cummins
- Engine type
- B3.3C74
- Engine power
- 55 kW
- Revolutions at max torque
- 2400 rpm
More technical details, like: drive, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
