ARX 45-2 Ammann ARX 45-2 Specifications & Technical Data (2014—2019)

Weight: 4.98t – Transport length: 2.92m – Transport width: 1.46m – Transport height: 2.84m – Travel speed: 10km/h – Frequency: 41Hz

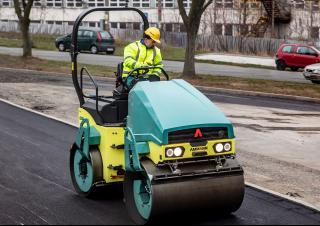

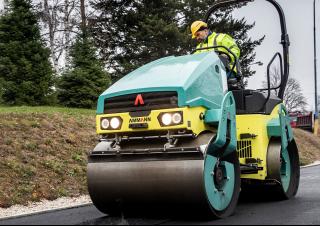

Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2
Rollers Tandem Vibration Rollers Ammann ARX 45-2

Technical specs - ARX 45-2 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.98 t
Transport length
2.92 m
Transport width
1.46 m
Transport height
2.84 m
Travel speed
10 km/h
Frequency
41 Hz
Roller width
1.38 m
Rollers Ø
0.85 m
Statical line load
16.5 kg/cm
Centrifugal force
45 kN
Model series
Light Tandem Rollers

More technical details, like: vibration, drive, steering, turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: vibration, drive, steering, turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Ammann ARX 45-2 FAQ

When was the Ammann ARX 45-2 manufactured?

The Ammann ARX 45-2 was manufactured from 2014 to 2019.

How much does the Ammann ARX 45-2 weigh?

The Ammann ARX 45-2 weighs 4.98 tons.

What are the transport dimensions of the Ammann ARX 45-2 tandem vibration roller?

The Ammann ARX 45-2 has a transport length of 2.92 meters, a transport width of 1.46 meters, and a transport height of 2.84 meters.

What is the travel speed of the Ammann ARX 45-2 tandem vibration roller?

The Ammann ARX 45-2 tandem vibration roller has a travel speed of 10 km/h.

What are the compaction specifications of the Ammann ARX 45-2 tandem vibration roller?

The Ammann ARX 45-2 operates at a frequency of 41 Hz, generates a centrifugal force of 45 kN, and has a statical line load of 16.5 kg/cm.

What are the roller specifications of the Ammann ARX 45-2 tandem vibration roller?

The Ammann ARX 45-2 has rollers that are 1.38 meters wide with a diameter of 0.85 meters.

How much is a Ammann ARX 45-2 Tandem Vibration Roller (2014u20132019) worth?

The residual value of the Ammann ARX 45-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
