ARX 16 T4f Ammann ARX 16 T4f Specifications & Technical Data (2018—2021)

Weight: 1.52t – Transport length: 2.02m – Transport width: 0.87m – Transport height: 1.73m – Vibration: d – Drive: A

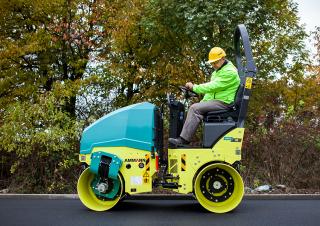

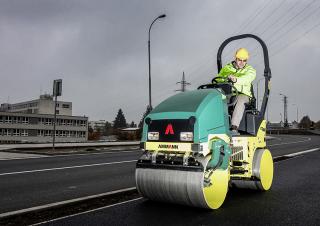

Rollers Tandem Vibration Rollers Ammann ARX 16 T4f

ARX 16 T4f

Years of manufacture: 2018—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 16 T4f Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.52 t

Transport length: 2.02 m

Transport width: 0.87 m

Transport height: 1.73 m

Vibration: d

Drive: A

Steering: KL

Travel speed: 8.5 km/h

Frequency: 66 Hz

Roller width: 0.95 m

Rollers Ø: 0.58 m

Statical line load: 7.9 kg/cm

Centrifugal force: 23 kN

Model series: ARX

Engine manuf.: Yanmar

Engine type: 3TNV80F

Engine power: 14.6 kW

Revolutions at max torque: 1800 rpm

Emission level: EU V

More technical details, like: turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Ammann ARX 16 T4f FAQ

When was the Ammann ARX 16 T4f manufactured?

The Ammann ARX 16 T4f was manufactured from 2018 to 2021.

How much does the Ammann ARX 16 T4f weigh?

The Ammann ARX 16 T4f weighs 1.52 tons.

What are the transport dimensions of the Ammann ARX 16 T4f tandem vibration roller?

The Ammann ARX 16 T4f has transport dimensions of 2.02 meters in length, 0.87 meters in width, and 1.73 meters in height.

What is the travel speed of the Ammann ARX 16 T4f tandem vibration roller?

The Ammann ARX 16 T4f has a travel speed of 8.5 km/h.

What type of drive system does the undercarriage of the Ammann ARX 16 T4f have?

The Ammann ARX 16 T4f features an all-wheel drive system in its undercarriage.

What type of steering does the Ammann ARX 16 T4f use for maneuverability?

The Ammann ARX 16 T4f uses articulated-frame steering for maneuverability.

What are the compaction capabilities of the Ammann ARX 16 T4f tandem vibration roller?

The Ammann ARX 16 T4f features a double vibration system operating at 66 Hz, generates a centrifugal force of 23 kN, and has a statical line load of 7.9 kg/cm.

What are the roller specifications of the Ammann ARX 16 T4f tandem vibration roller?

The Ammann ARX 16 T4f has rollers that are 0.95 meters wide with a diameter of 0.58 meters.
