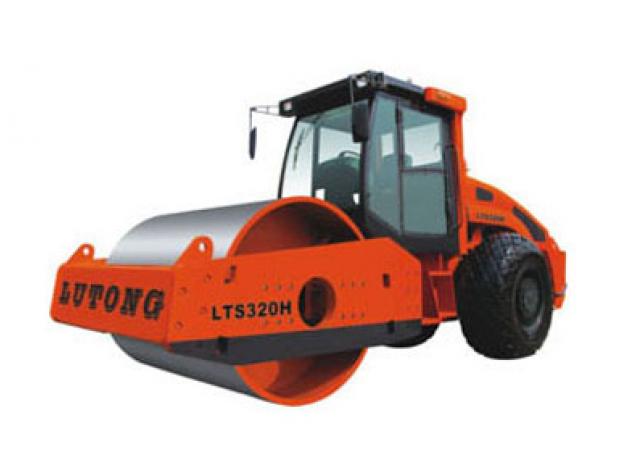

LTS320H YTO LTS320H Specifications & Technical Data (2017—2026)
Technical specs - LTS320H YTO
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 20 t
- Transport length
- 6.1 m
- Transport width
- 2.35 m
- Transport height
- 3 m
- Drive
- E
- Travel speed
- 11 km/h
- Frequency
- 35 Hz
- Roller width
- 2.1 m
- Amplitude
- 1.9 mm
- Turning radius outside
- 6.5 m
- Statical line load
- 41.8 kg/cm
- Model series
- LTS
- Engine manuf.
- Cummins
- Engine type
- 6BTA5.9
- Engine power
- 132 kW
More technical details, like: vibration, rollers Ø, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
YTO LTS320H FAQ
How much does the YTO LTS320H weigh?
What are the transport dimensions of the YTO LTS320H single-drum roller?
What is the travel speed of the YTO LTS320H single-drum roller?
What type of drive system does the YTO LTS320H have in its undercarriage?
What is the turning radius of the YTO LTS320H single-drum roller?
What are the compaction capabilities of the YTO LTS320H single-drum roller?
What is the roller width of the YTO LTS320H single-drum roller?
How much is a YTO LTS320H Single-drum Roller (2017u20132025) worth?
Machine inspection
Ask for inspection of your YTO LTS320H from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare YTO LTS320H with similar Single-drum Rollers

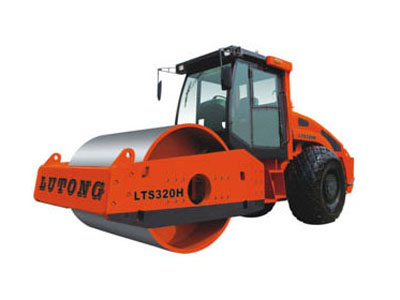

YTO LTS320H
