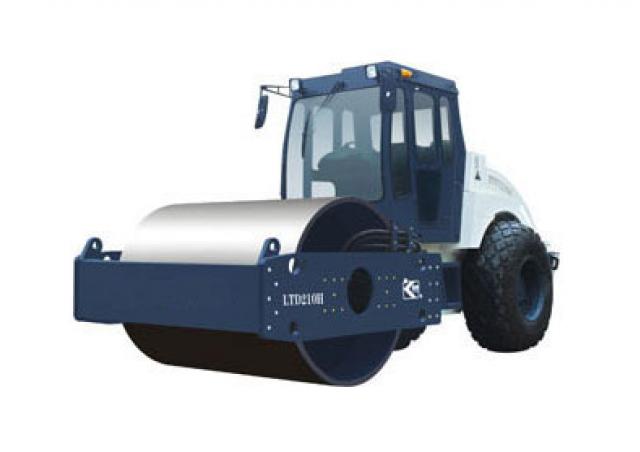

LTD216H YTO LTD216H Specifications & Technical Data (2017—2026)
Technical specs - LTD216H YTO
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16 t
- Transport length
- 5.82 m
- Transport width
- 2.28 m
- Transport height
- 3.05 m
- Drive
- E
- Travel speed
- 11 km/h
- Frequency
- 35 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.57 m
- Amplitude
- 2 mm
- Turning radius outside
- 7.5 m
- Turning radius inside
- 5.4 m
- Statical line load
- 46.6 kg/cm
- Model series
- LTD
- Engine manuf.
- Cummins
- Engine type
- 6BT5.9
- Engine power
- 110 kW
More technical details, like: vibration, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
