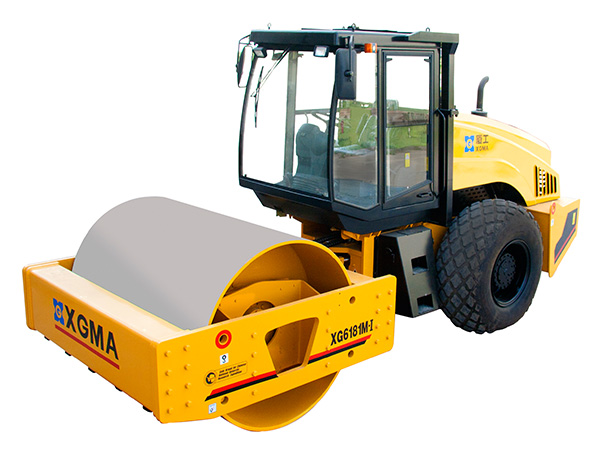

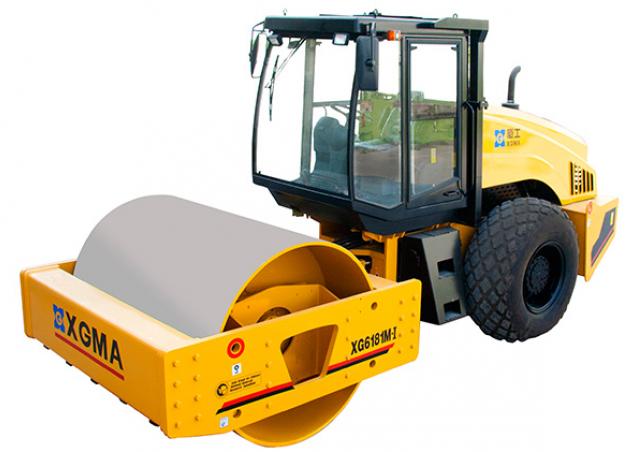

XG6181M-I XGMA XG6181M-I Specifications & Technical Data (2017—2021)
Technical specs - XG6181M-I XGMA
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 18 t
- Transport length
- 6.11 m
- Transport width
- 2.33 m
- Transport height
- 3.2 m
- Travel speed
- 8.8 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.55 m
- Amplitude
- 2 mm
- Turning radius outside
- 6.5 m
- Model series
- XG
- Engine manuf.
- Yuchai
- Engine type
- YC6B150Z-T21
- Engine power
- 110 kW
More technical details, like: vibration, drive, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
