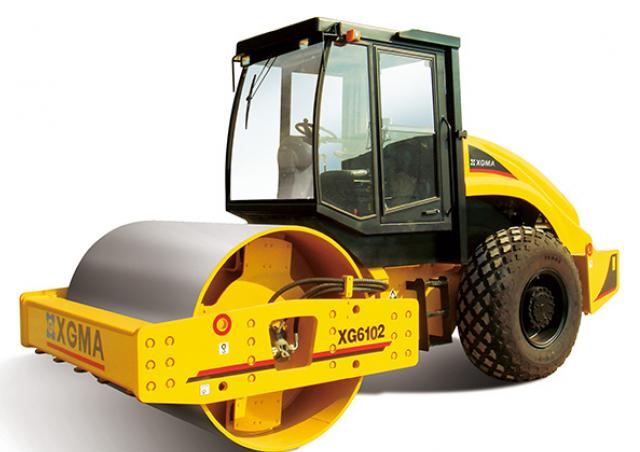

XG6102 XGMA XG6102 Specifications & Technical Data (2017—2026)
Technical specs - XG6102 XGMA
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 10.6 t
- Transport length
- 5.69 m
- Transport width
- 2.27 m
- Transport height
- 3.2 m
- Travel speed
- 10.4 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.55 m
- Amplitude
- 1.7 mm
- Turning radius outside
- 6.3 m
- Model series
- XG
- Engine manuf.
- Cummins
- Engine type
- 4BTA3.9
- Engine power
- 97 kW
More technical details, like: vibration, drive, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
