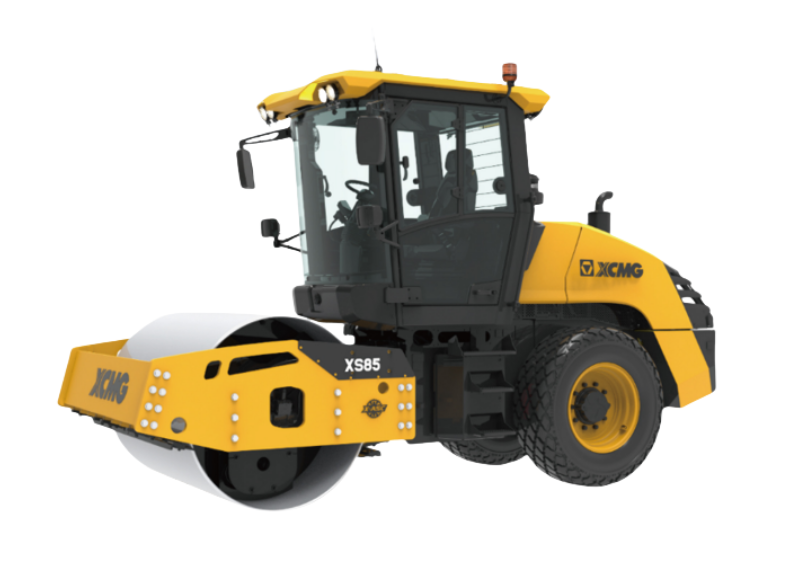

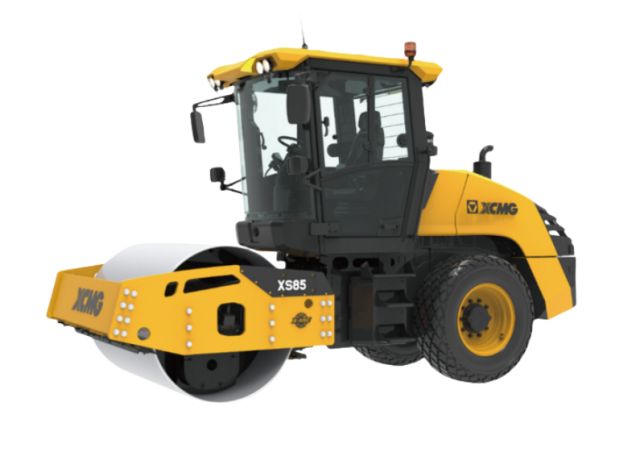

XS85 XCMG XS85 Specifications & Technical Data (2025—2026)

Weight: 7.5t – Transport length: 4.98m – Transport width: 1.87m – Transport height: 2.88m – Travel speed: 12km/h – Frequency: 32/36Hz

Rollers Single-drum Rollers XCMG XS85

Visit XCMG live at

Technical specs - XS85 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.5 t
Transport length
4.98 m
Transport width
1.87 m
Transport height
2.88 m
Travel speed
12 km/h
Frequency
32/36 Hz
Roller width
1.7 m
Model series
XS
Engine manuf.
Cummins
Engine type
k.A.
Engine power
74 kW
Revolutions at max torque
2200 rpm
Emission level
III

More technical details, like: vibration, drive, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
