XS75G XCMG XS75G Specifications & Technical Data (2025—2026)

Weight: 7t – Transport length: 4.59m – Transport width: 1.925m – Transport height: 2.9m – Travel speed: 12km/h – Frequency: 30/40Hz

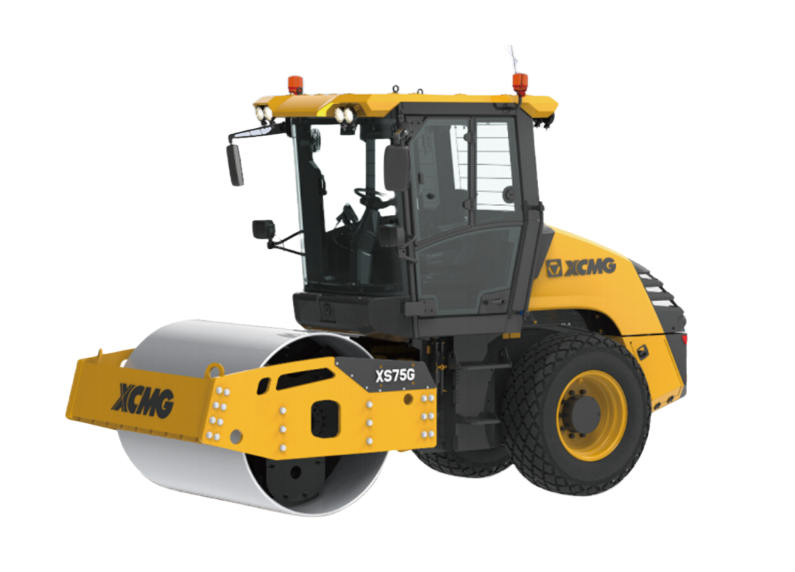

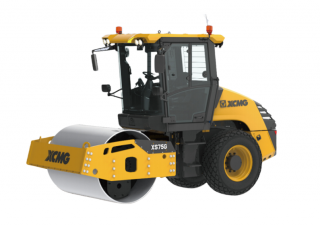

Rollers Single-drum Rollers XCMG XS75G

Visit XCMG live at

Technical specs - XS75G XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Transport length
4.59 m
Transport width
1.925 m
Transport height
2.9 m
Travel speed
12 km/h
Frequency
30/40 Hz
Roller width
1.7 m
Rollers Ø
1.25 m
Turning radius inside
2.875 m
Centrifugal force
130 kN
Model series
XS
Engine manuf.
Kubota
Engine type
V3307
Engine power
52.6 kW
Revolutions at max torque
2400 rpm
Max. torque
285/1500 Nm
No. of cylinders
4
Emission level
V

More technical details, like: vibration, drive, amplitude, turning radius outside, statical line load, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
