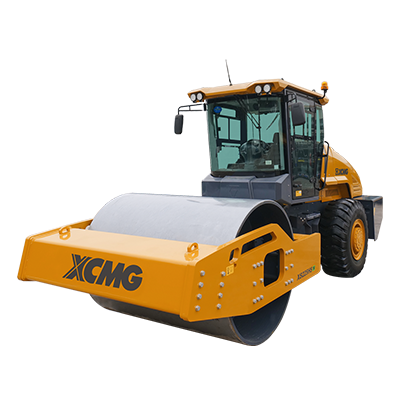

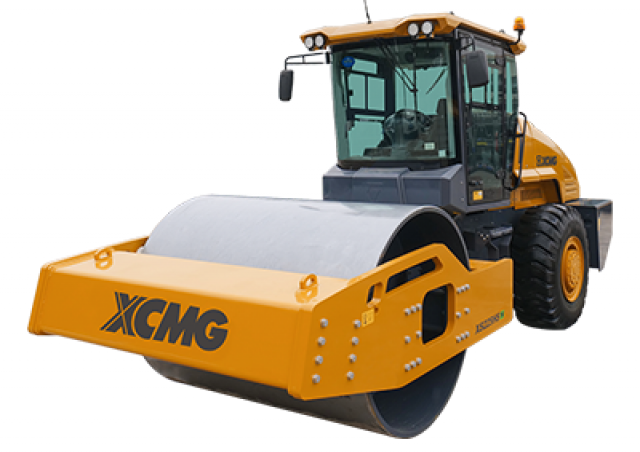

XS225HSIV XCMG XS225HSIV Specifications & Technical Data (2026—2026)

Weight: 22t – Transport length: 6.7m – Transport width: 2.39m – Transport height: 3.26m – Frequency: 28/33Hz – Roller width: 2.13m

Rollers Single-drum Rollers XCMG XS225HSIV

Visit XCMG live at

Technical specs - XS225HSIV XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
6.7 m
Transport width
2.39 m
Transport height
3.26 m
Frequency
28/33 Hz
Roller width
2.13 m
Centrifugal force
374 kN
Model series
XS
Engine manuf.
Shangchai
Engine type
k.A.
Engine power
122 kW
Emission level
Euro IV

More technical details, like: vibration, drive, travel speed, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: vibration, drive, travel speed, rollers Ø, amplitude, turning radius outside, turning radius inside, statical line load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No
